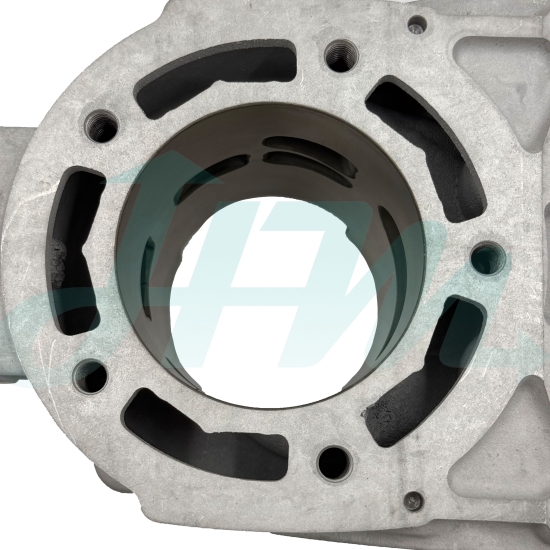

CYLINDERS
NINJA150 / KR150 / ZX150 / SE150
HMCS0400568

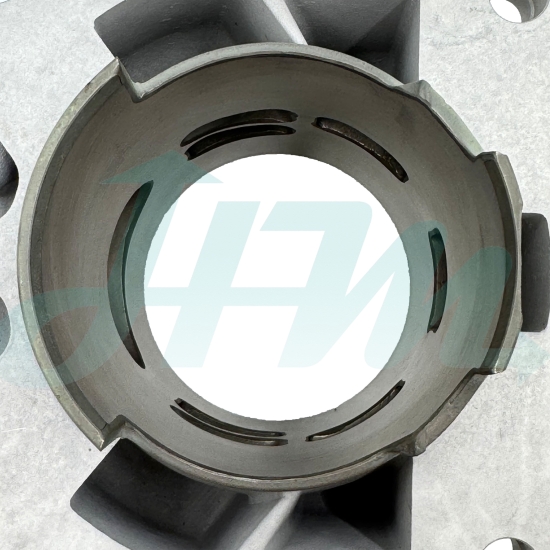

MATERIAL: CERAMIC
MATERIAL: CERAMIC
Specification
| MATERIAL | CERAMIC | ENGINE STROKE | 2 STROKE |
|---|---|---|---|
| ORIGINAL SIZE | ø59 | ORIGINAL CC | 149CC |
| BIG BORE SIZE | ø68 | BIG BORE CC | 197.9CC |
| COUNTRY OF ORIGIN | TAIWAN |
Feature
ORIGINAL CYLINDER KIT - HMCS0400559
| ITEM | NO. |
| Ceramic cylinder ø59 | HMCY0400559 |
| Gaskets | HMGK0400559 |
| Cast piston | HMPS0400559 |

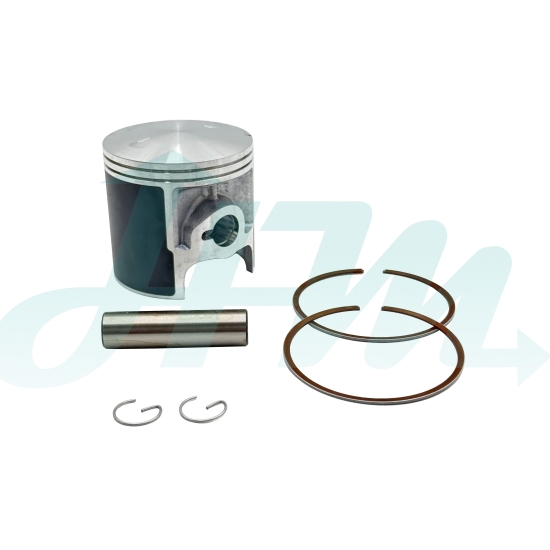

The piston assembly includes the piston pin, clips and piston rings.

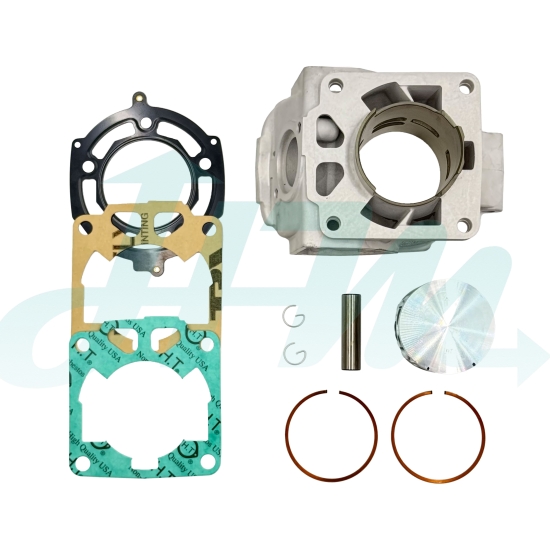

BIG BORE CYLINDER KIT - HMCS0400568
| ITEM | NO. |
| Ceramic cylinder ø68 | HMCY0400568 |

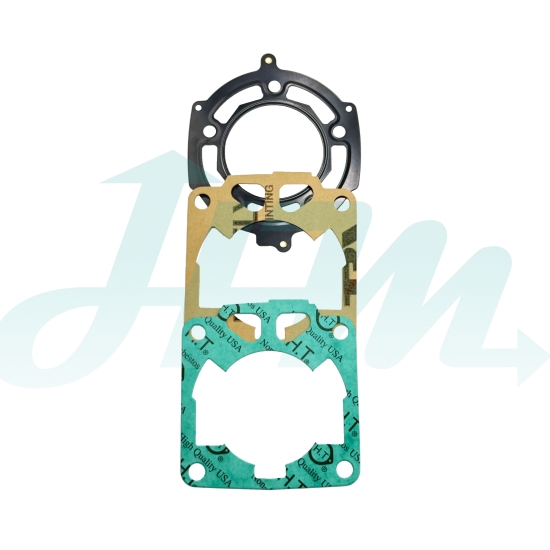

| Gaskets | HMGK0400568 |
| Cast piston | HMPS0400568 |
The piston assembly includes the piston pin, clips and piston rings.
