CYLINDERS
JOG50
HMCS1102047WH
MATERIAL: CAST IRON
MATERIAL: CAST IRON
Specification
| MATERIAL | CAST IRON | ENGINE STROKE | 2 STROKE |
|---|---|---|---|
| ORIGINAL SIZE | ø40 | ORIGINAL CC | 50CC |
| BIG BORE SIZE | ø47 | BIG BORE CC | 67.9CC |
| BIG BORE SIZE | ø48 | BIG BORE CC | 70.9CC |
| COUNTRY OF ORIGIN | TAIWAN |
Feature
ORIGINAL CYLINDER KIT - HMCS1102040
| ITEM | NO. |
| Cast iron cylinder ø40 | HMCY1102040 |
| Gaskets | HMGK1102040 |
| Cast piston | HMPS1102040 |
The piston assembly includes the piston pin, clips and piston rings.
BIG BORE CYLINDER KIT - HMCS1102047WH
| ITEM | NO. |

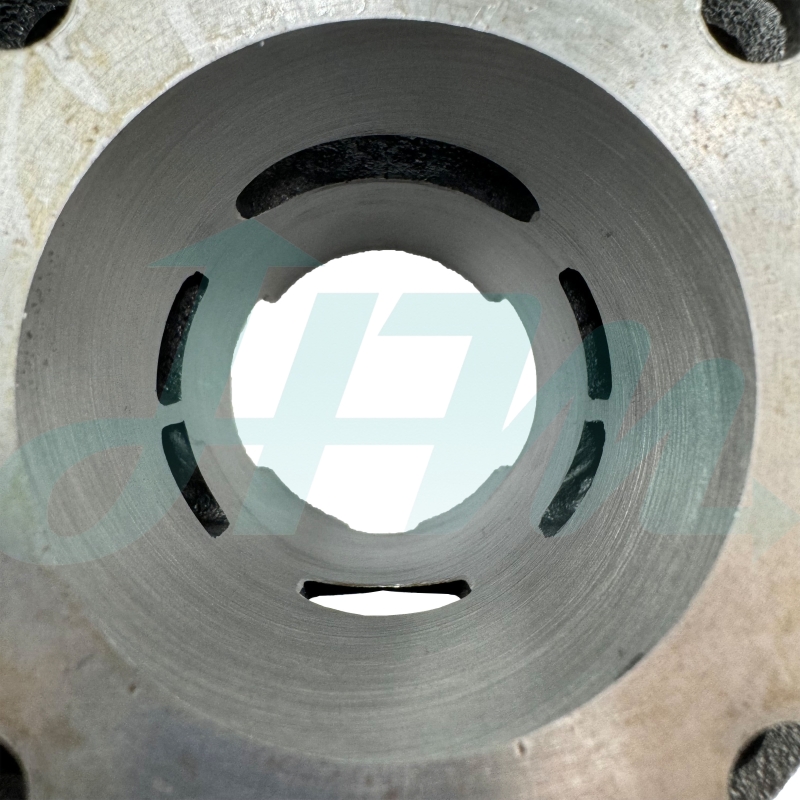

| Cast iron cylinder ø47 | HMCY1102047 |
| Cylinder head | HMCH1102047 |

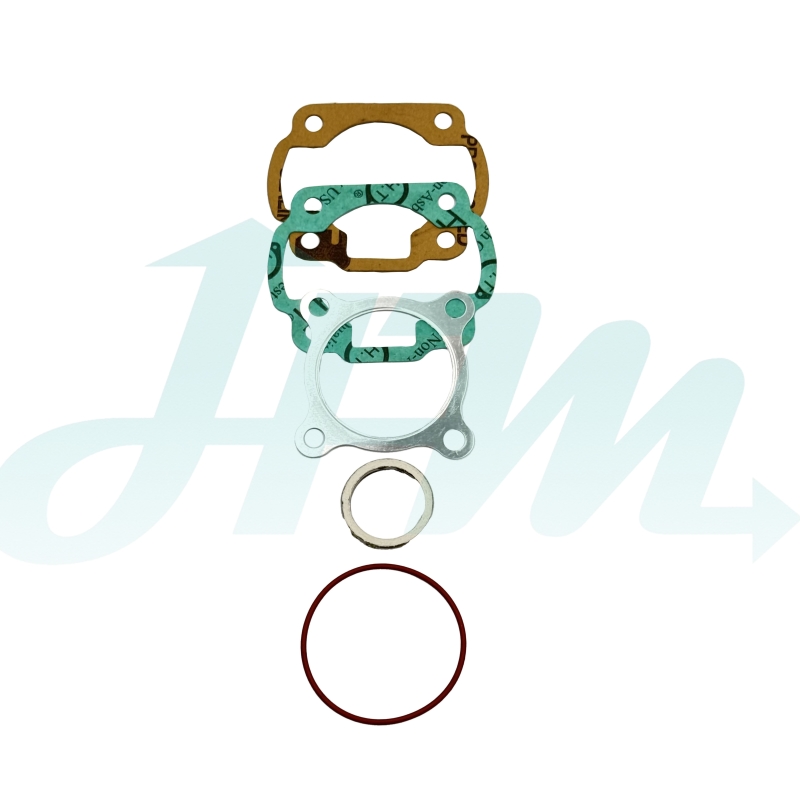

| Gaskets | HMGK1102047 |
| Cast piston | HMPS1102047 |
The piston assembly includes the piston pin, clips and piston rings.
BIG BORE CYLINDER KIT - HMCS1102048WH
| ITEM | NO. |
| Cast iron cylinder ø48 | HMCY1102048 |
| Cylinder head | HMCH1102048 |
| Gaskets | HMGK1102048 |
| Cast piston | HMPS1102048 |
The piston assembly includes the piston pin, clips and piston rings.
