CYLINDERS
AXIS90 / JOG90 L/C
HMCS1100654WH
MATERIAL: CAST IRON
MATERIAL: CAST IRON
Specification
| MATERIAL | CAST IRON | ENGINE STROKE | 2 STROKE |
|---|---|---|---|
| ORIGINAL SIZE | ø50 | ORIGINAL CC | 82CC |
| BIG BORE SIZE | ø52 | BIG BORE CC | 89.2CC |
| BIG BORE SIZE | ø54 | BIG BORE CC | 96CC |
| COUNTRY OF ORIGIN | TAIWAN |
Feature
ORIGINAL CYLINDER KIT - HMCS1100650
| ITEM | NO. |
| Cast iron cylinder ø50 | HMCY1100650 |
| Gaskets | HMGK1100650 |
| Cast piston | HMPS1100650 |
The piston assembly includes the piston pin, clips and piston rings.
BIG BORE CYLINDER KIT - HMCS1100652WH
| ITEM | NO. |
| Cast iron cylinder ø52 | HMCY1100652 |
| Cylinder head | HMCH1100652 |
| Gaskets | HMGK1100652 |
| Cast piston | HMPS1100652 |
The piston assembly includes the piston pin, clips and piston rings.

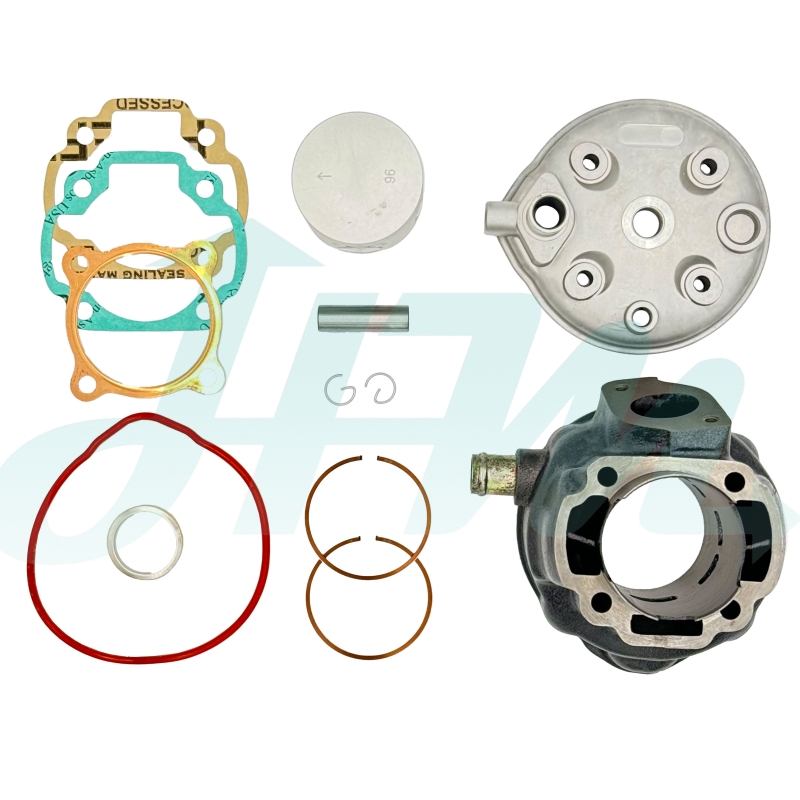

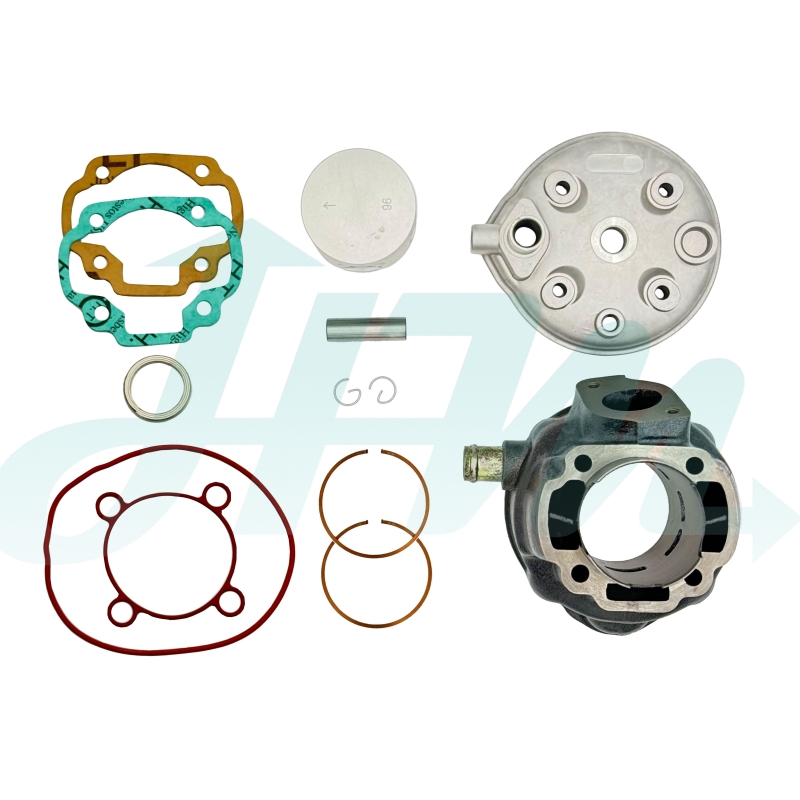

BIG BORE CYLINDER KIT - HMCS1100654WH
| ITEM | NO. |

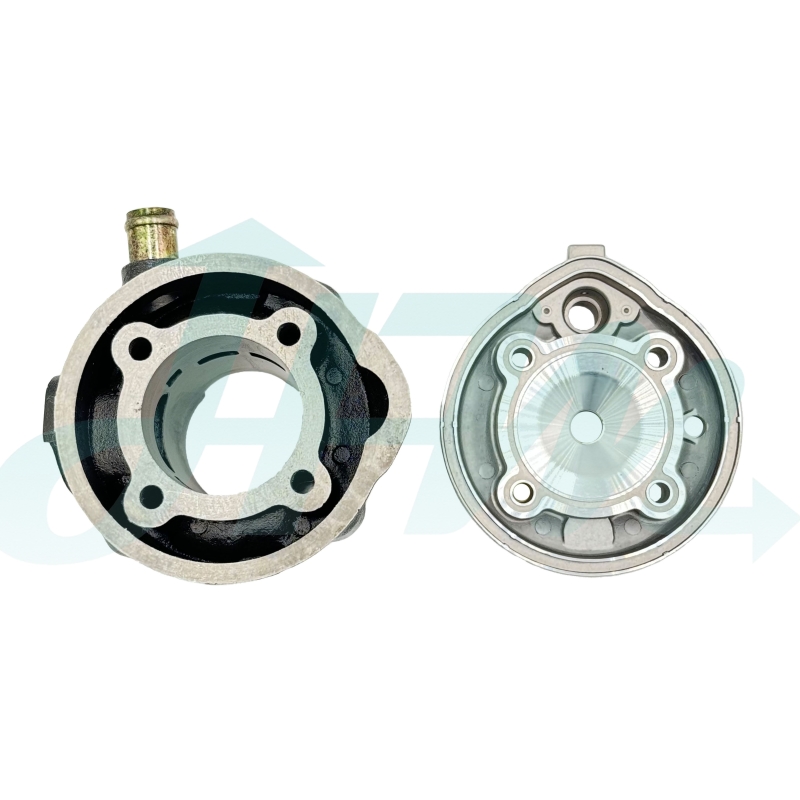

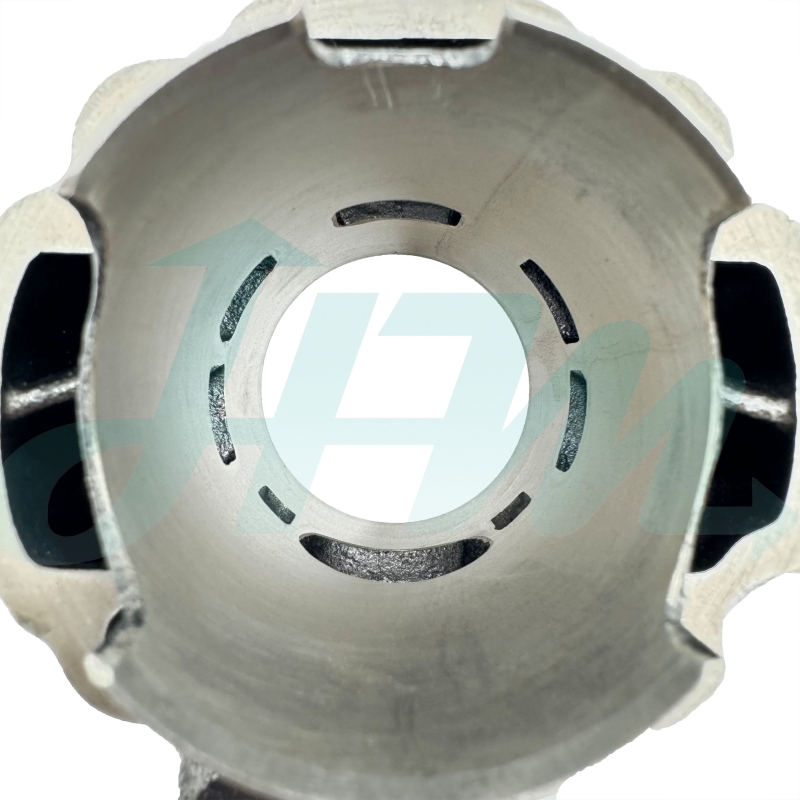

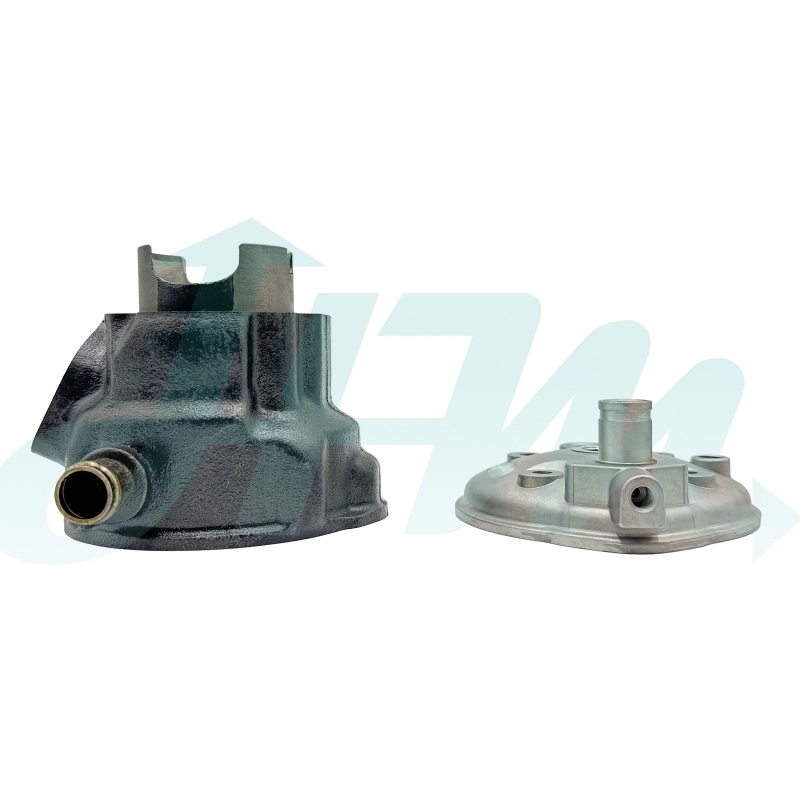

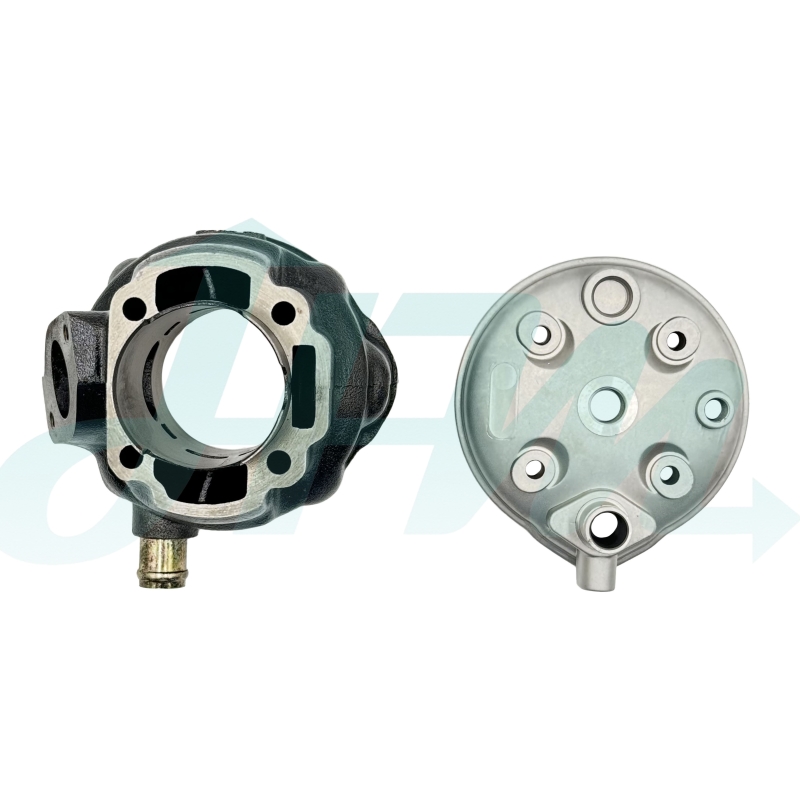

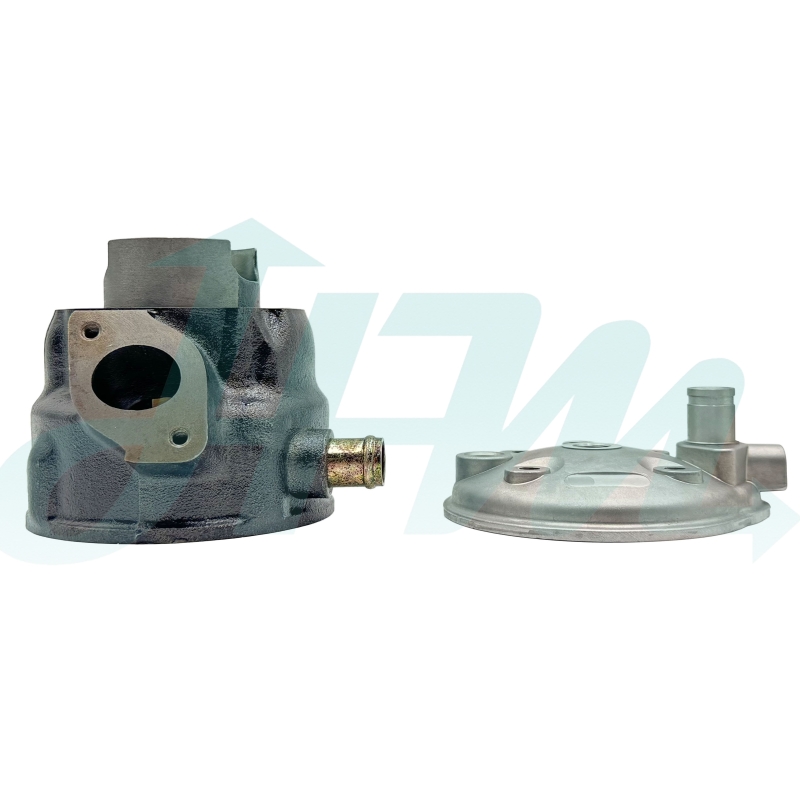

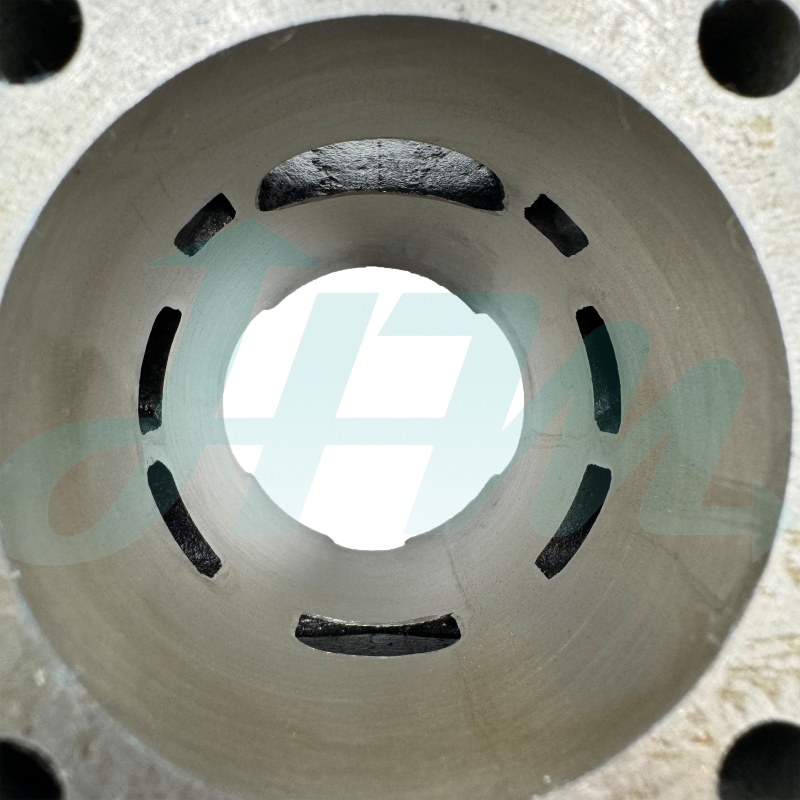

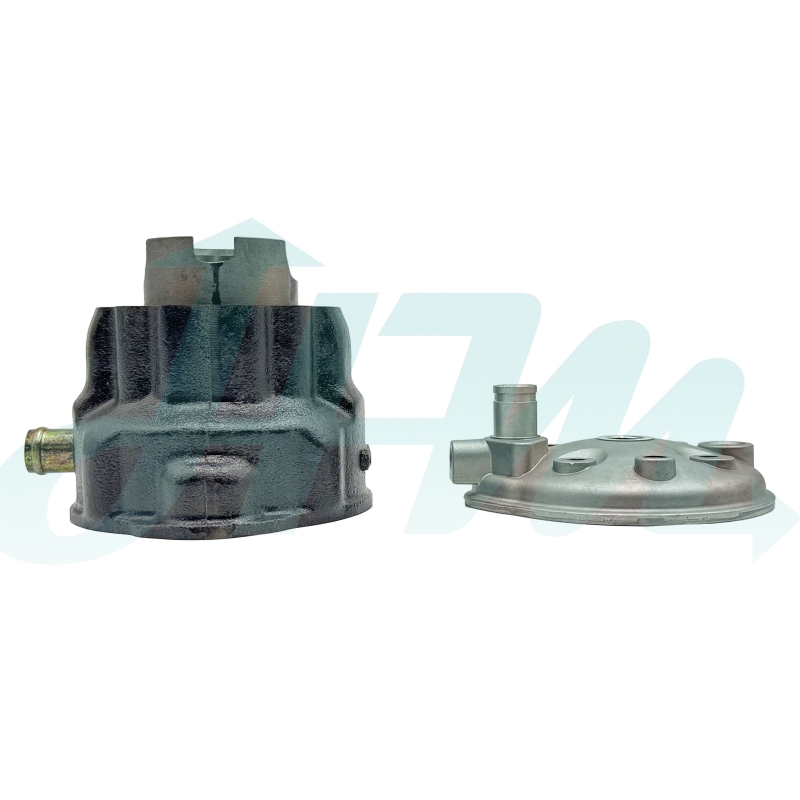

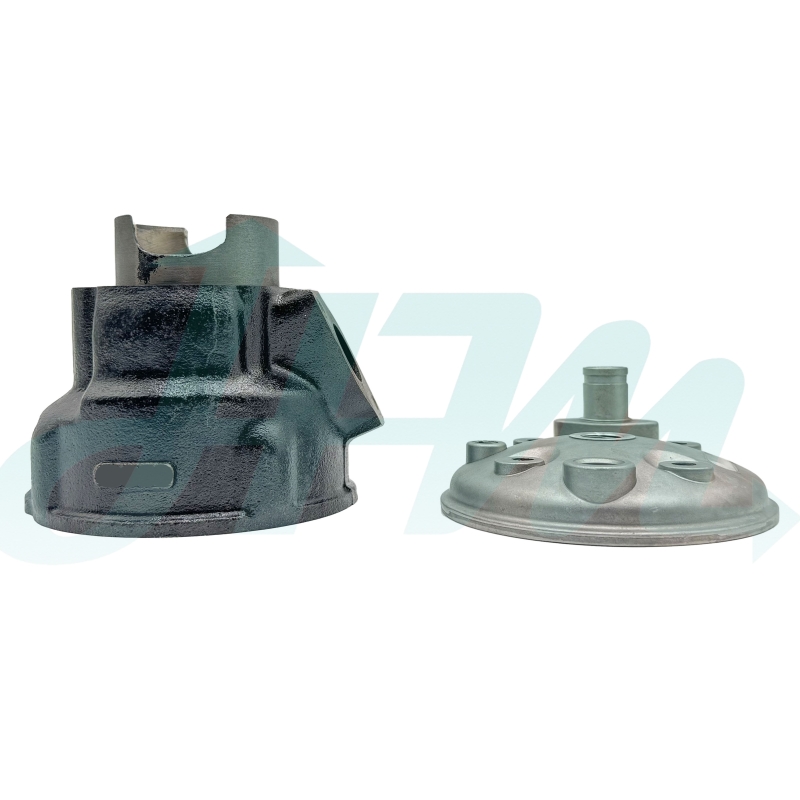

| Cast iron cylinder ø54 | HMCY1100654 |
| Cylinder head | HMCH1100654 |

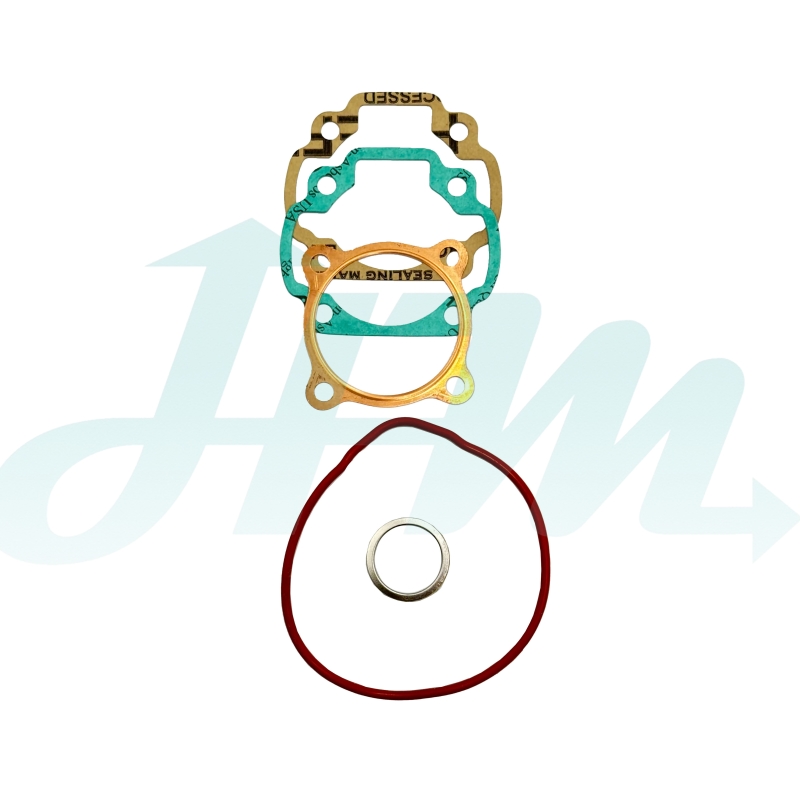

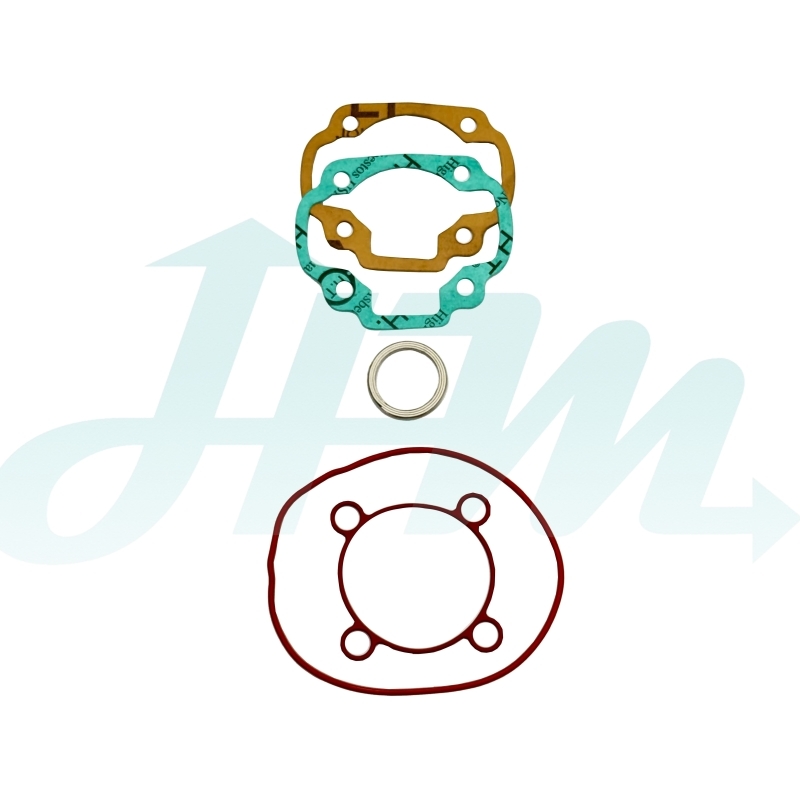

| Gaskets | HMGK1100654 |

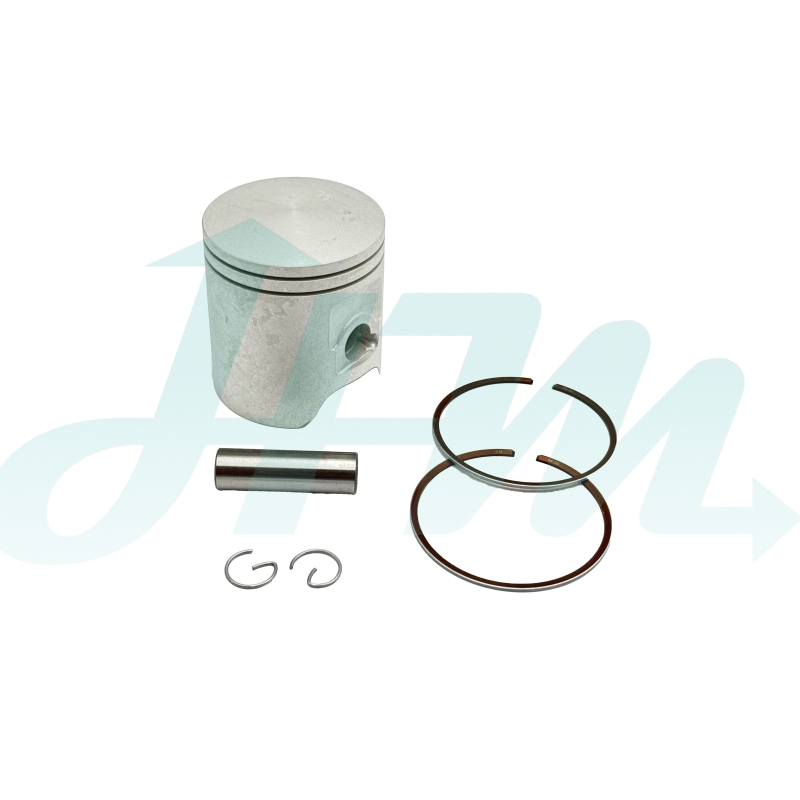

| Cast piston | HMPS1100654 |
The piston assembly includes the piston pin, clips and piston rings.
