CYLINDERS
AXIS90 / JOG90 A/C
HMCS1100554WH
MATERIAL: CAST IRON
MATERIAL: CAST IRON
Specification
| MATERIAL | CAST IRON | ENGINE STROKE | 2 STROKE |
|---|---|---|---|
| ORIGINAL SIZE | ø50 | ORIGINAL CC | 82CC |
| BIG BORE SIZE | ø52 | BIG BORE CC | 89.2CC |
| BIG BORE SIZE | ø54 | BIG BORE CC | 96CC |
| COUNTRY OF ORIGIN | TAIWAN |
Feature
ORIGINAL CYLINDER KIT - HMCS1100550
| ITEM | NO. |
| Cast iron cylinder ø50 | HMCY1100550 |
| Gaskets | HMGK1100550 |
| Cast piston | HMPS1100550 |
The piston assembly includes the piston pin, clips and piston rings.
BIG BORE CYLINDER KIT - HMCS1100552WH
| ITEM | NO. |
| Cast iron cylinder ø52 | HMCY1100552 |
| Cylinder head | HMCH1100552 |
| Gaskets | HMGK1100552 |
| Cast piston | HMPS1100552 |
The piston assembly includes the piston pin, clips and piston rings.

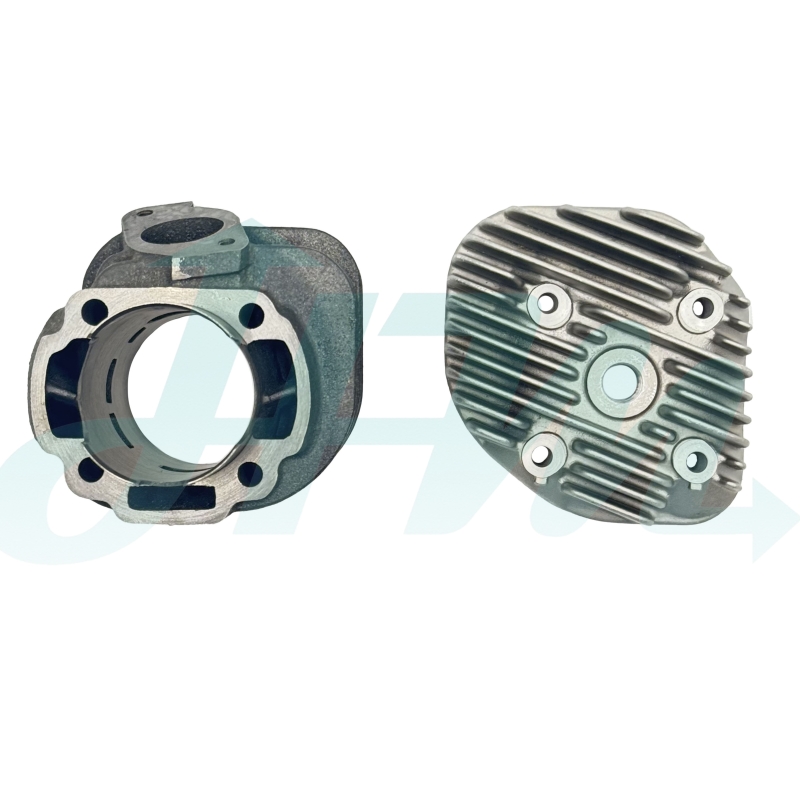

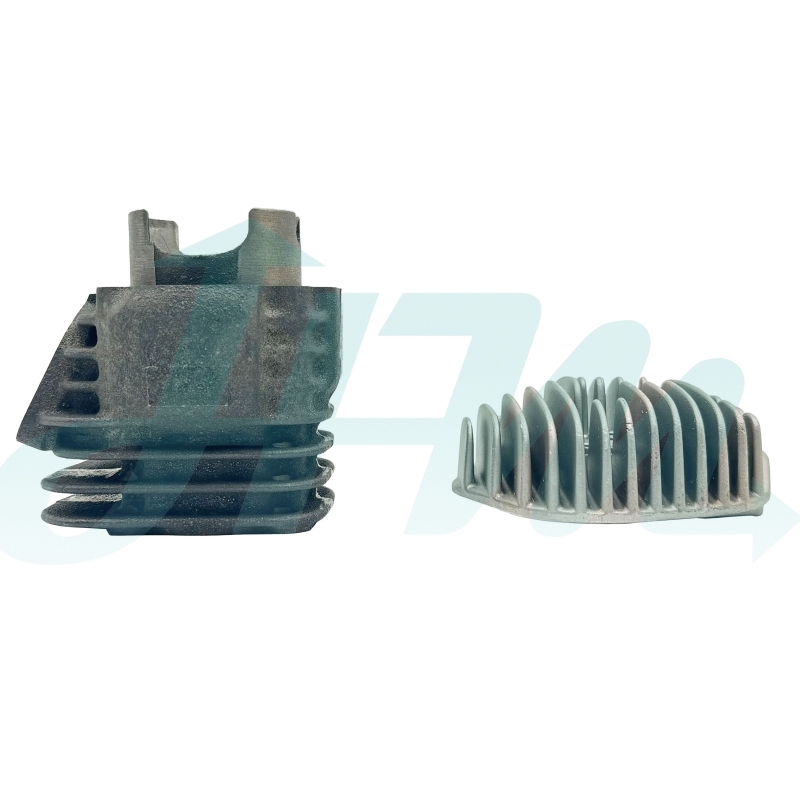

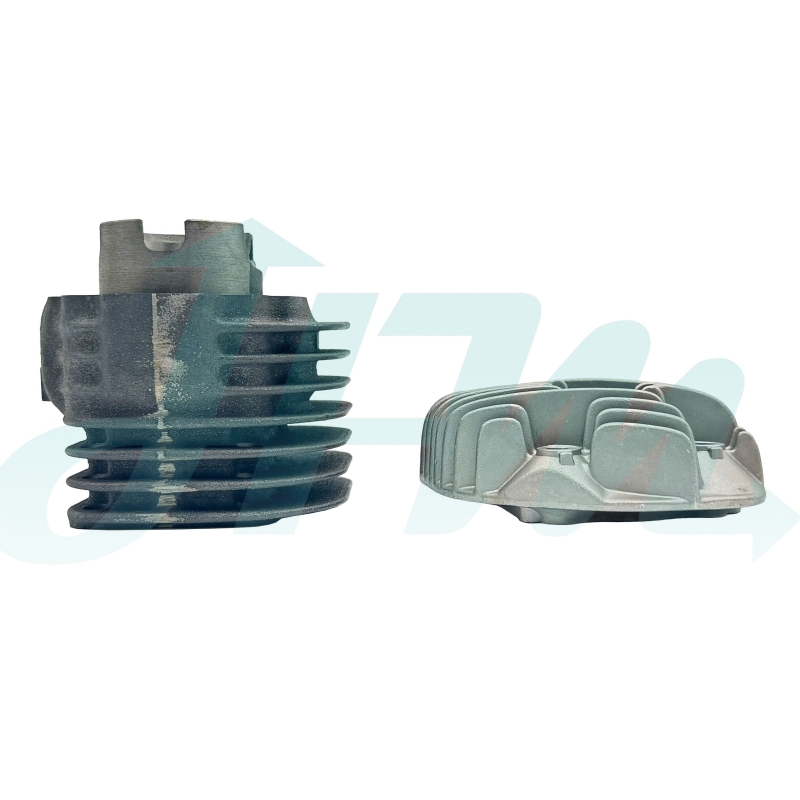

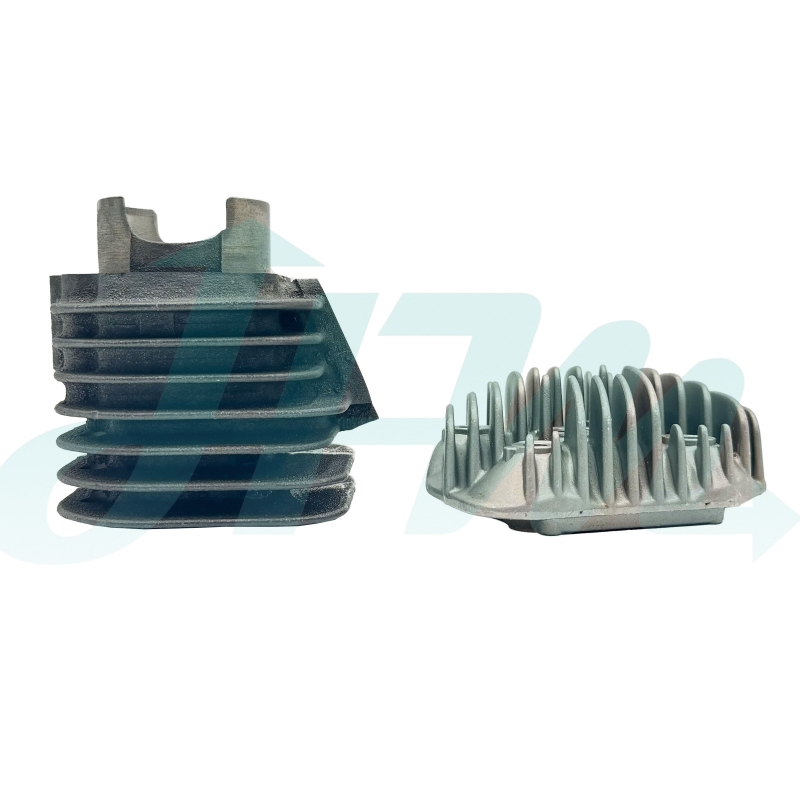

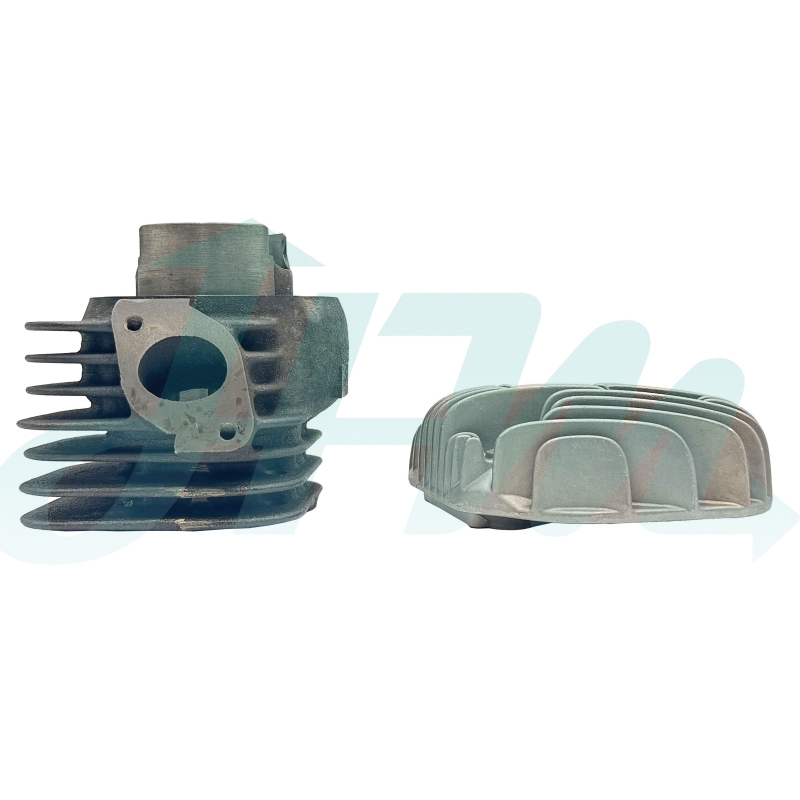

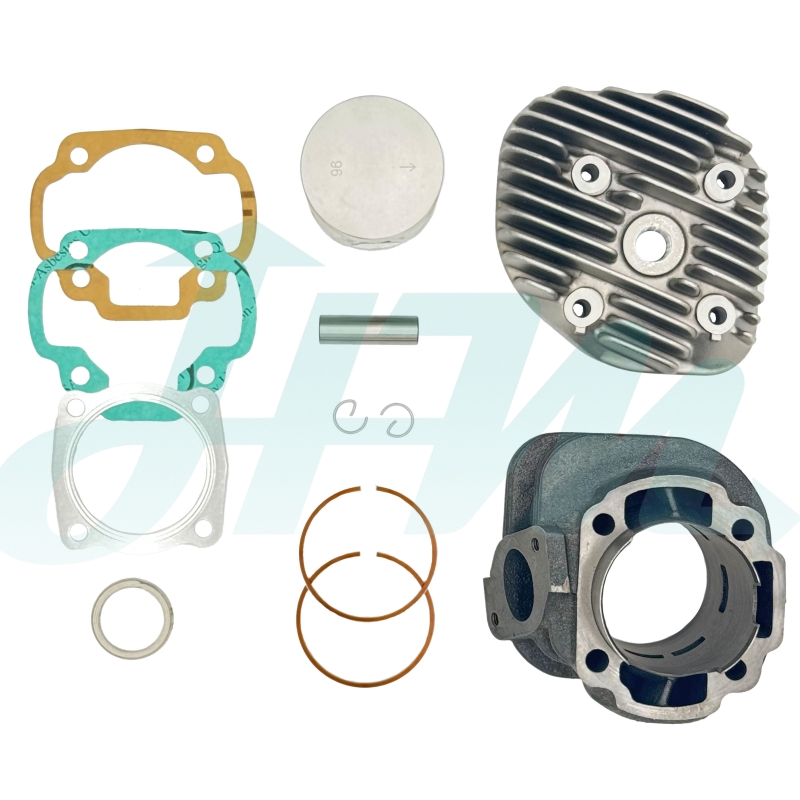

BIG BORE CYLINDER KIT - HMCS1100554WH
| ITEM | NO. |

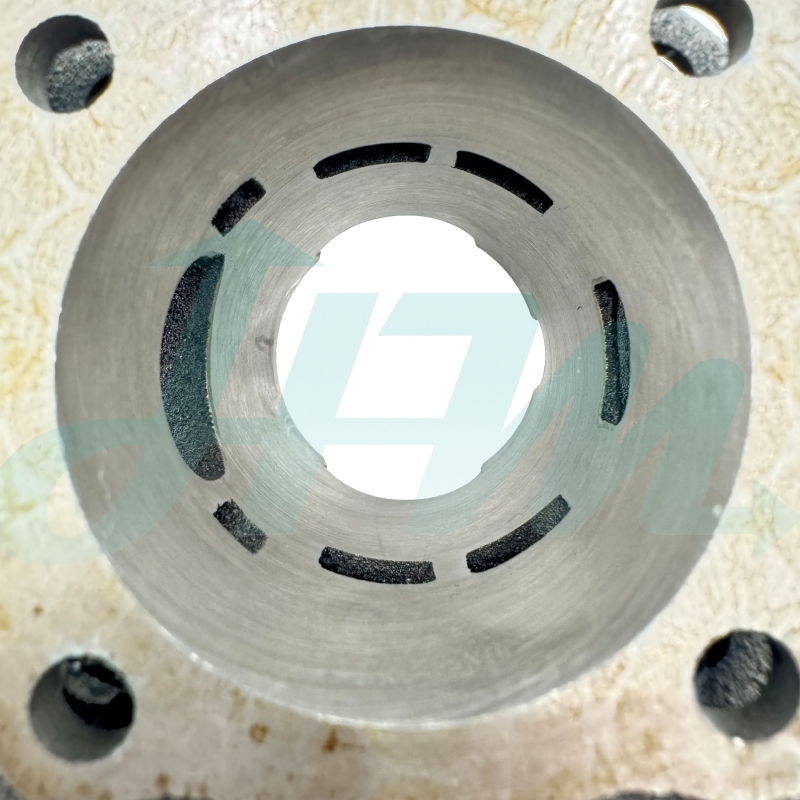

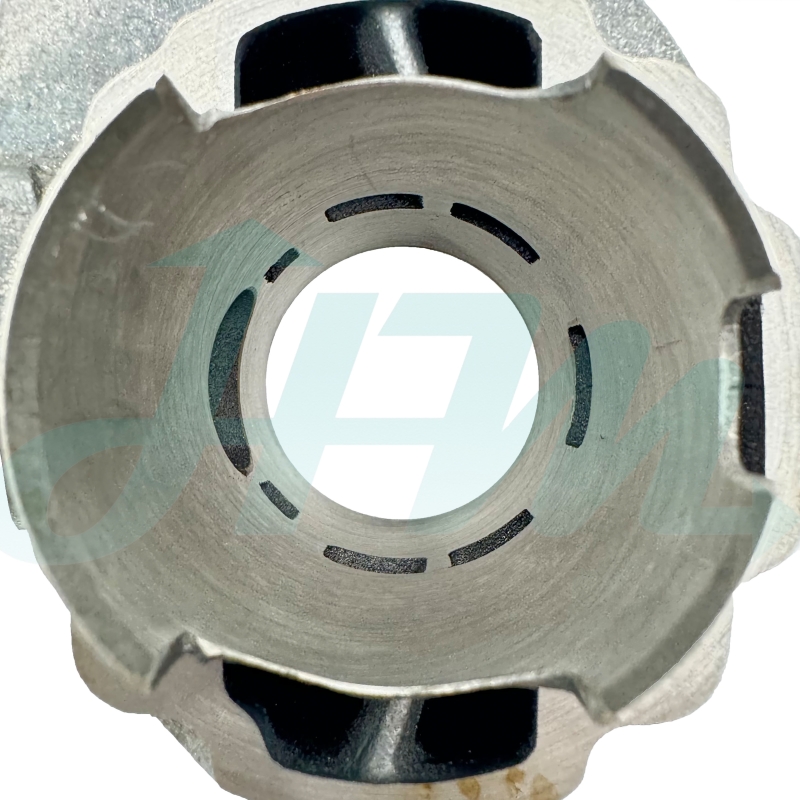

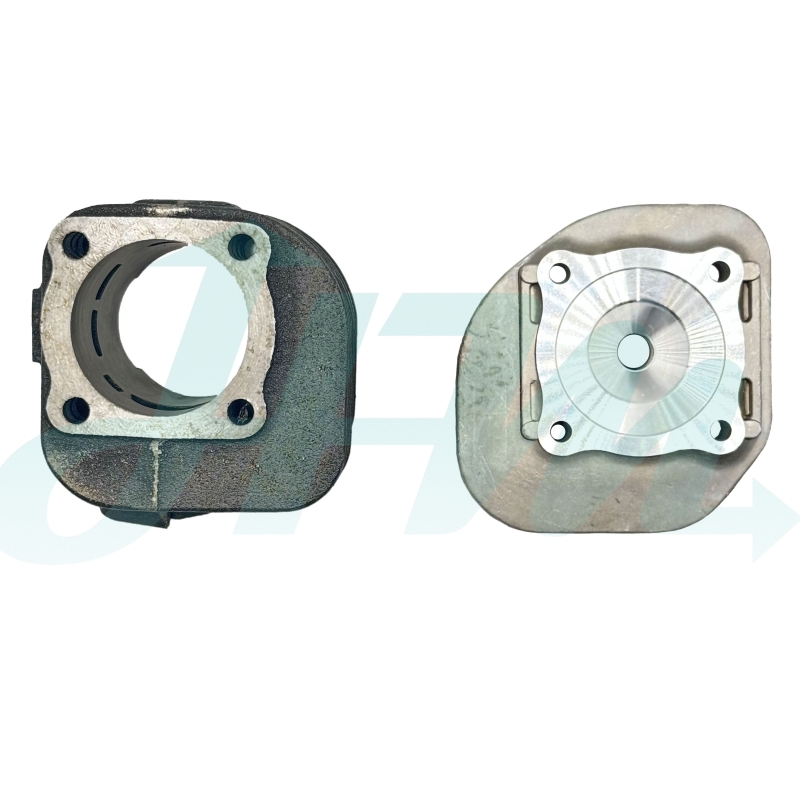

| Cast iron cylinder ø54 | HMCY1100554 |
| Cylinder head | HMCH1100554 |

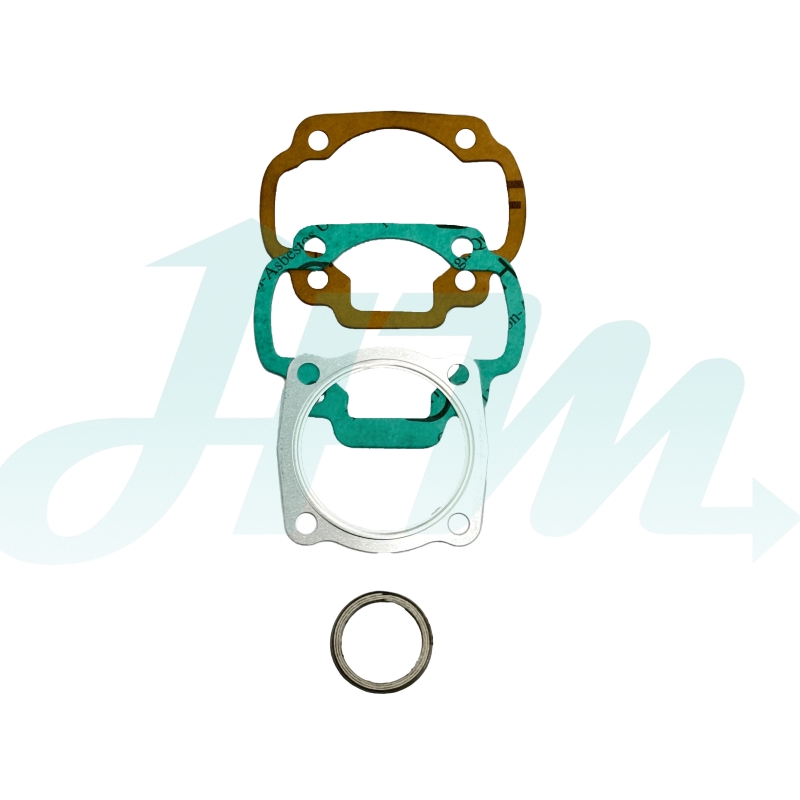

| Gaskets | HMGK1100554 |
| Cast piston | HMPS1100554 |

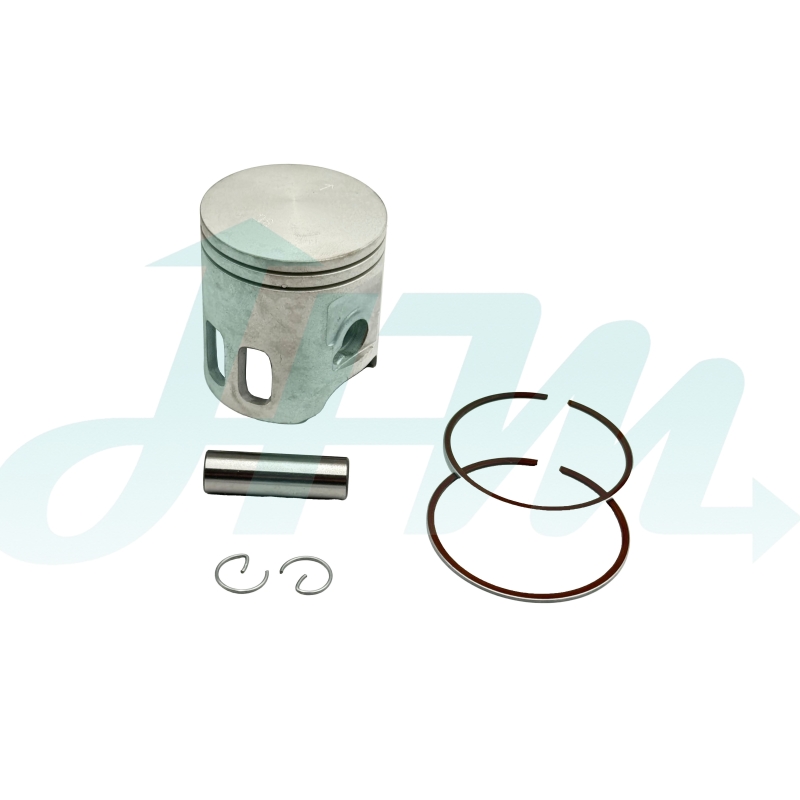

The piston assembly includes the piston pin, clips and piston rings.
