CYLINDERS
DERBI SENDA 2002
HMCS0200147WH

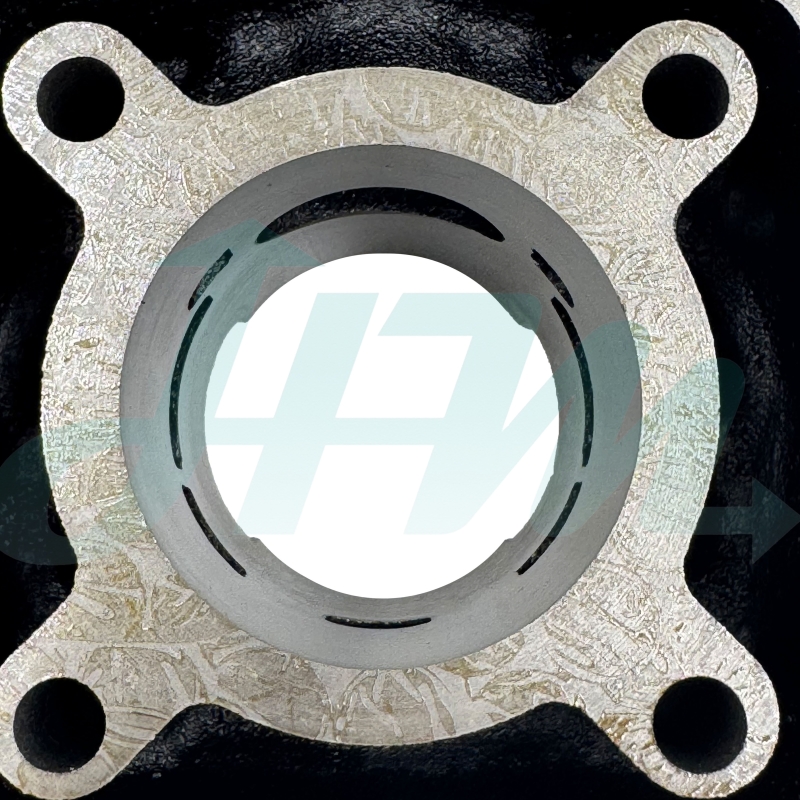

MATERIAL: CAST IRON
MATERIAL: CAST IRON
Specification
| MATERIAL | CAST IRON | ENGINE STROKE | 2 STROKE |
|---|---|---|---|
| ORIGINAL SIZE | ø39.88 | ORIGINAL CC | 49.9CC |
| BIG BORE SIZE | ø47 | BIG BORE CC | 69.3CC |
| COUNTRY OF ORIGIN | TAIWAN |
Feature
ORIGINAL CYLINDER KIT - HMCS0200139.88
| ITEM | NO. |
| Cast iron cylinder ø39.88 | HMCY0200139.88 |
| Gaskets | HMGK0200139.88 |
| Cast piston | HMPS0200139.88 |
The piston assembly includes the piston pin, clips and piston rings.

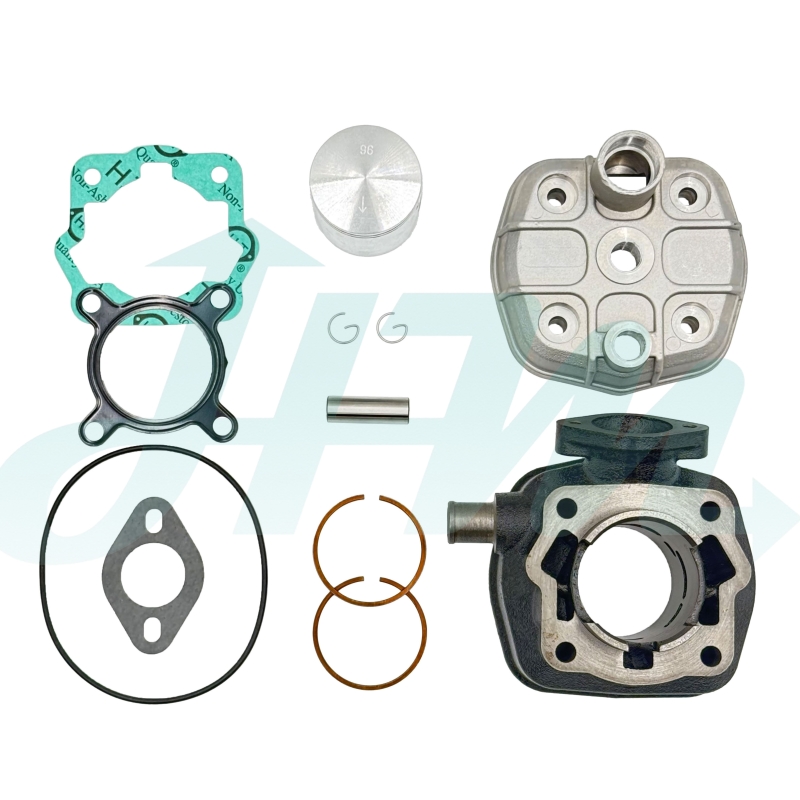

BIG BORE CYLINDER KIT - HMCS0200147WH
| ITEM | NO. |

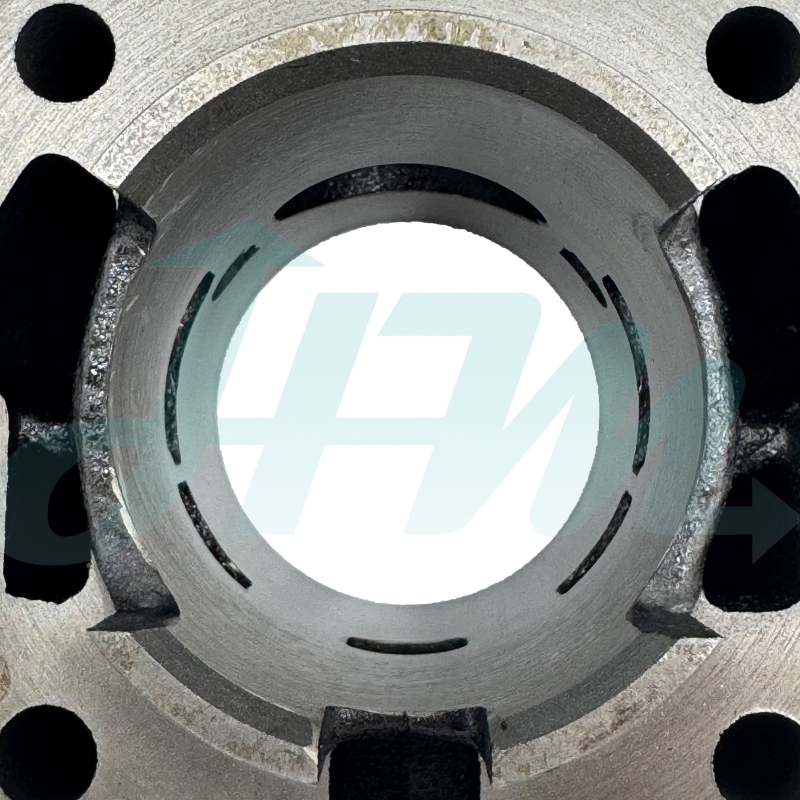

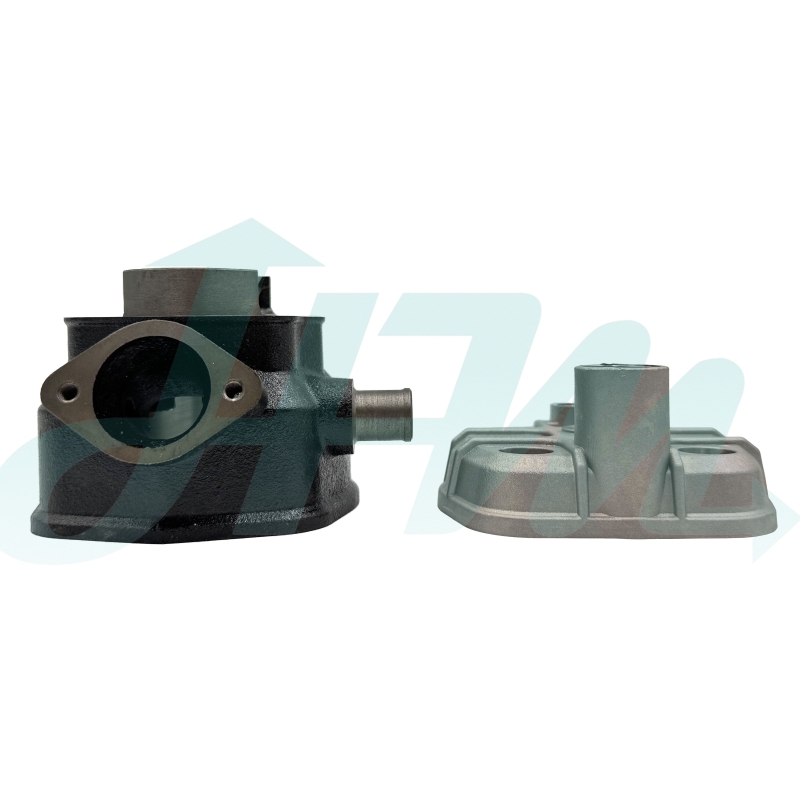

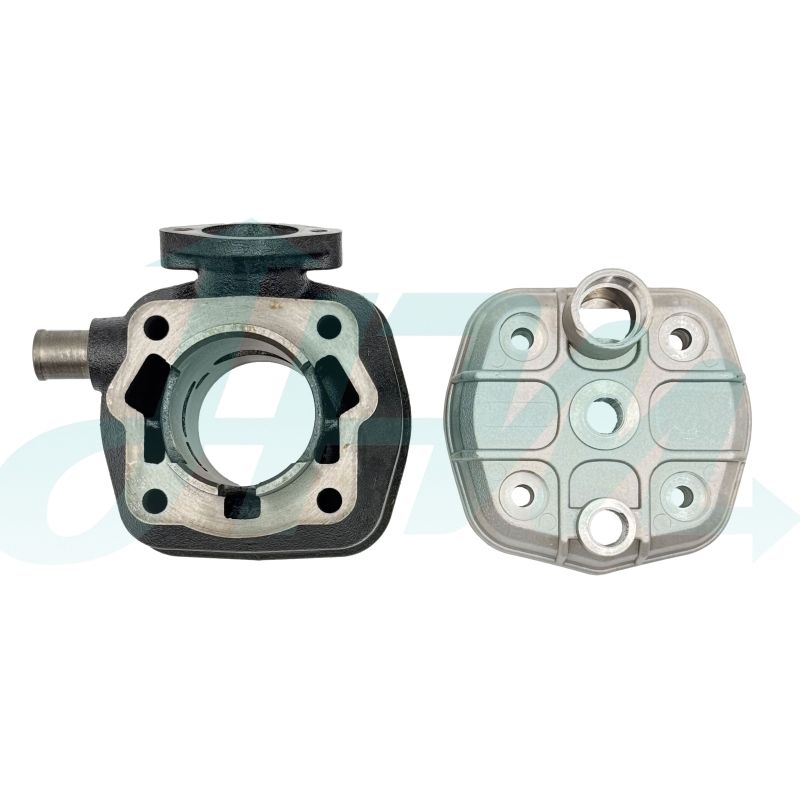

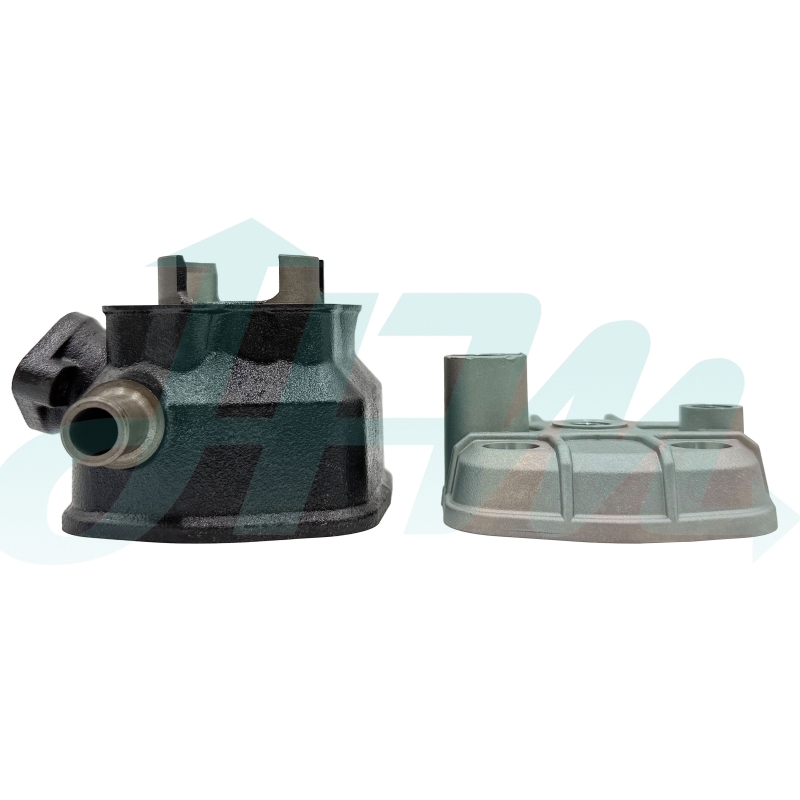

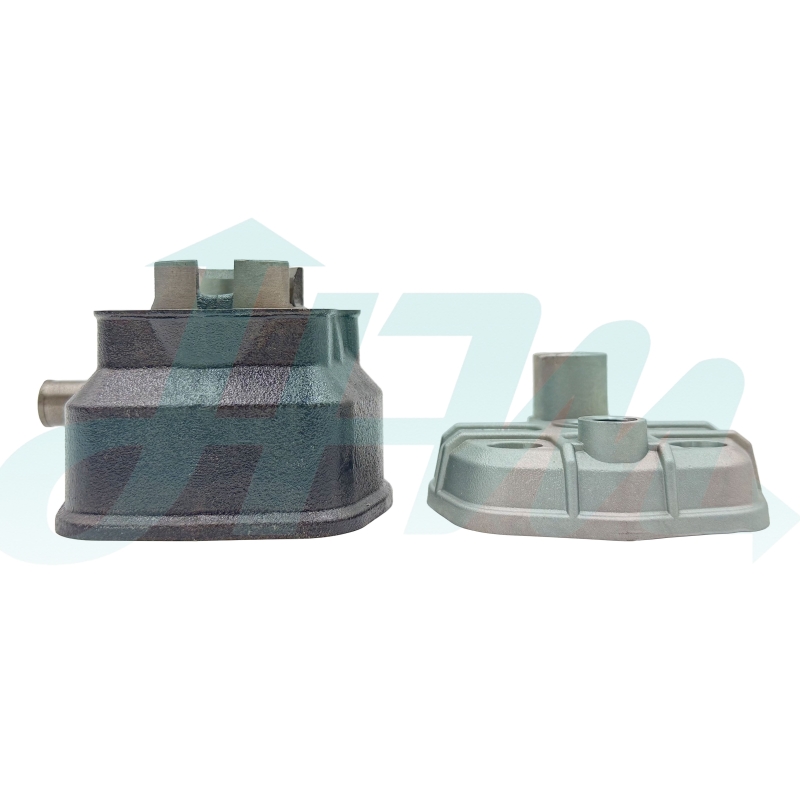

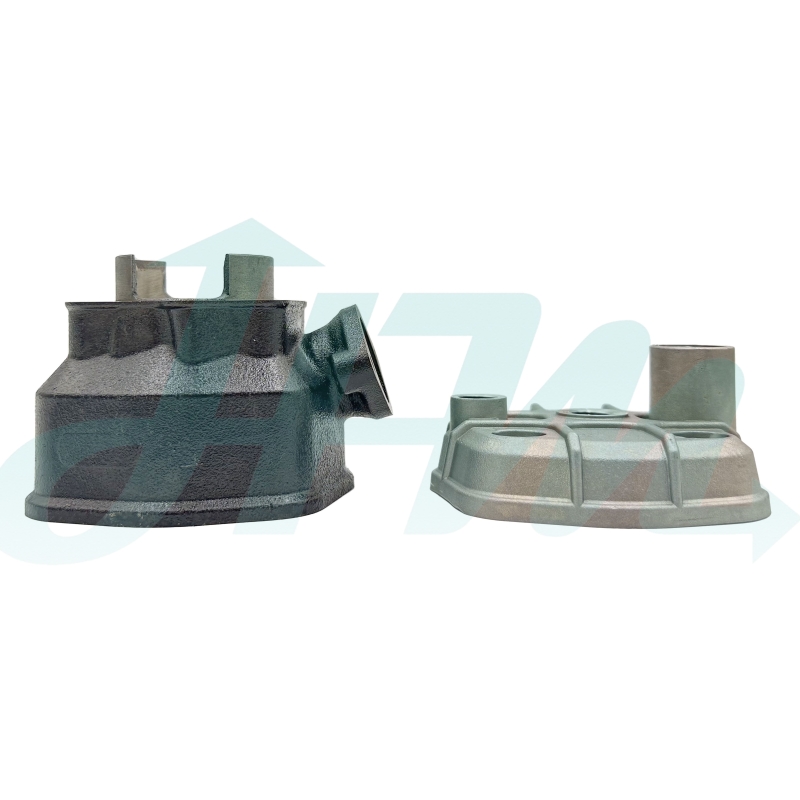

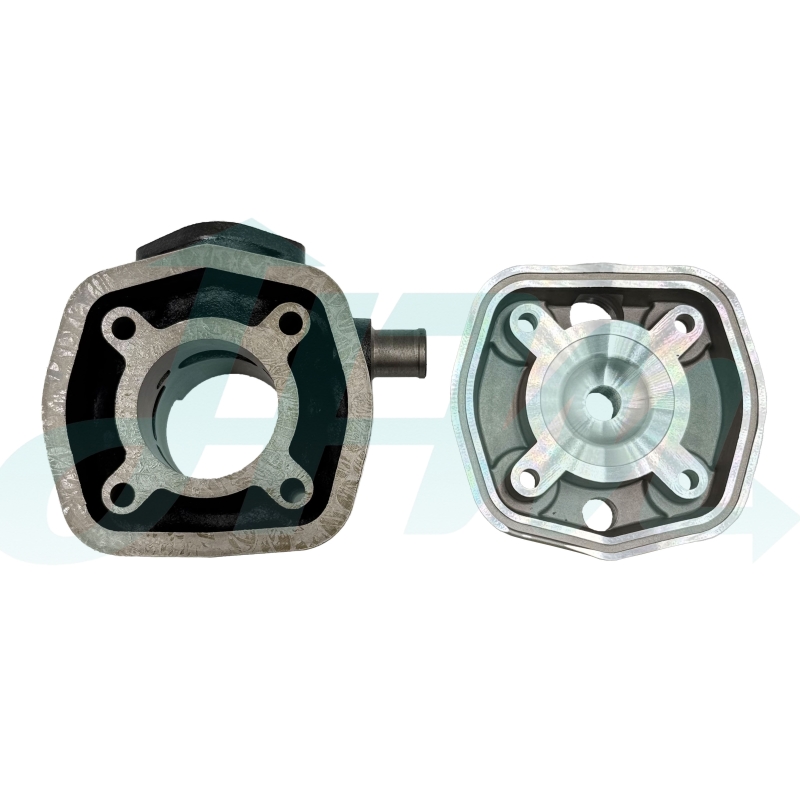

| Cast iron cylinder ø47 | HMCY0200147 |
| Cylinder head | HMCH0200147 |

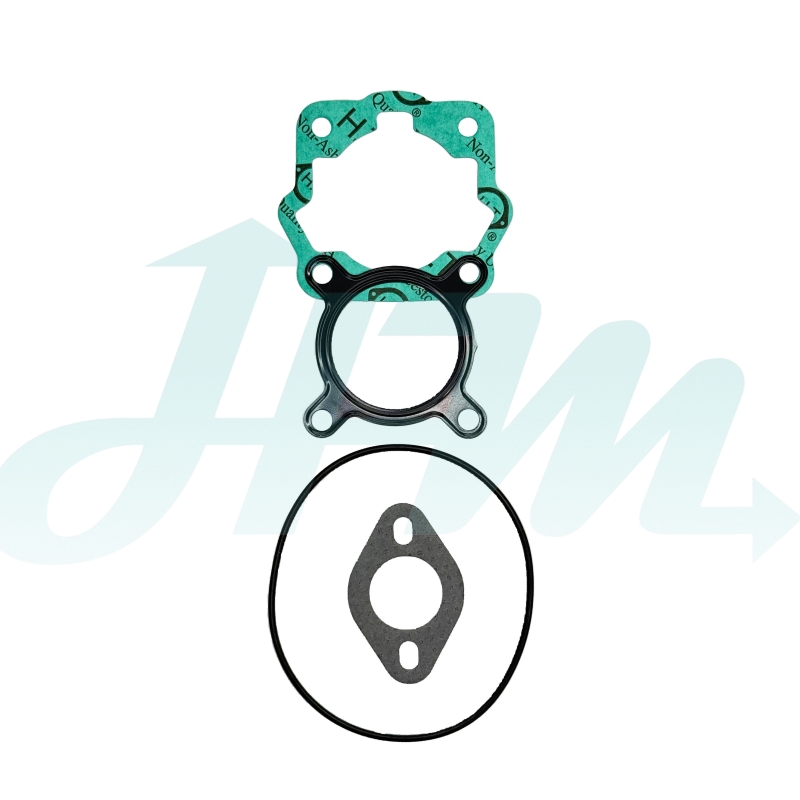

| Gaskets | HMGK0200147 |

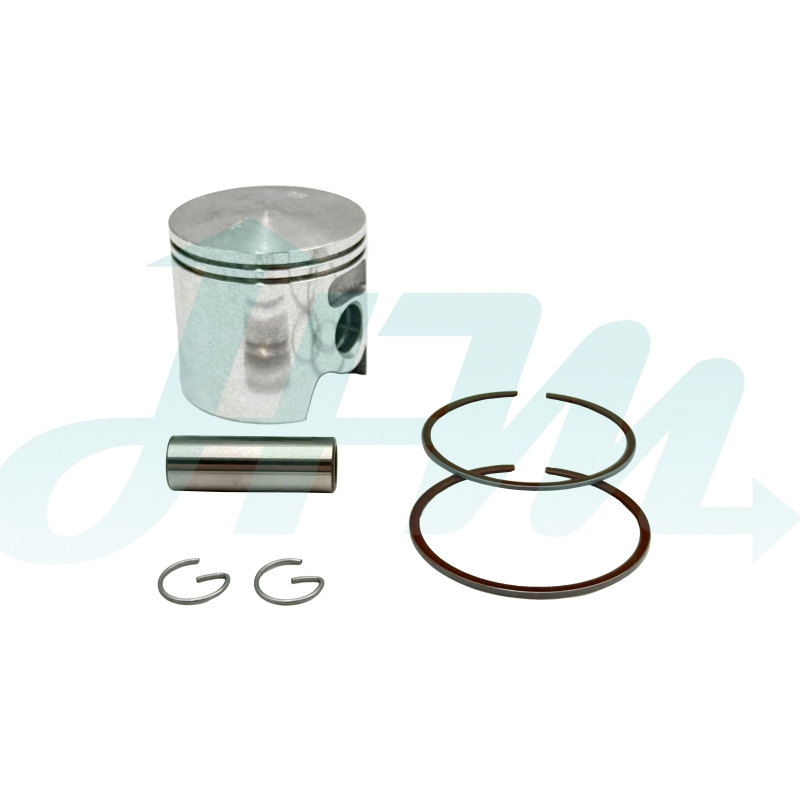

| Cast piston | HMPS0200147 |
The piston assembly includes the piston pin, clips and piston rings.
