CYLINDERS
PE200
HMCS0801266.5
MATERIAL: CERAMIC
MATERIAL: CERAMIC
Specification
| MATERIAL | CERAMIC | ENGINE STROKE | 2 STROKE |
|---|---|---|---|
| ORIGINAL SIZE | ø66.5 | ORIGINAL CC | 198CC |
| BIG BORE SIZE | ø70.5 | BIG BORE CC | 223CC |
| COUNTRY OF ORIGIN | TAIWAN |
Feature

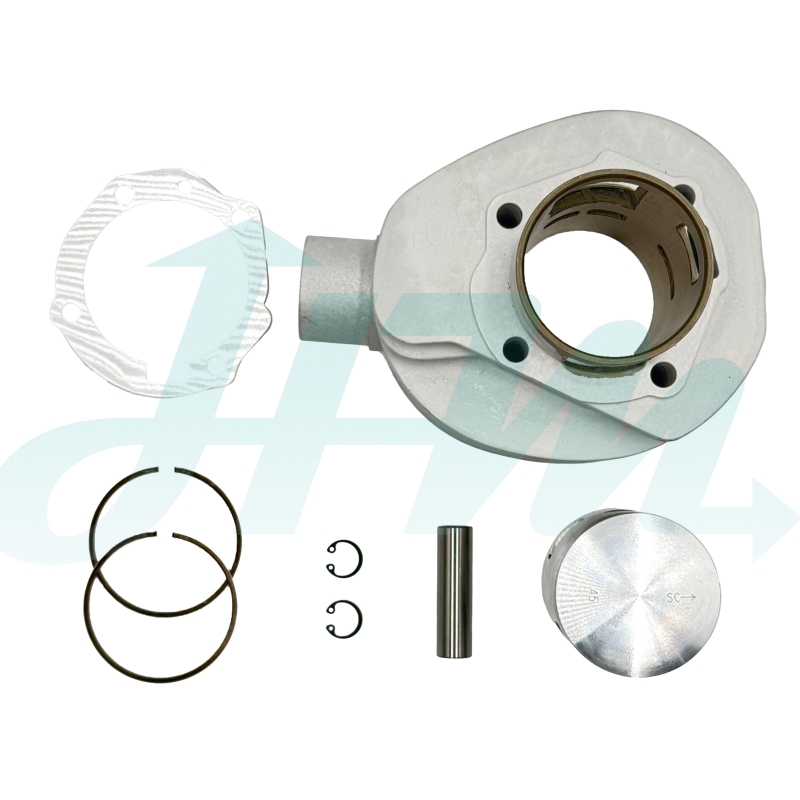

ORIGINAL CYLINDER KIT - HMCS0801266.5
| ITEM | NO. |

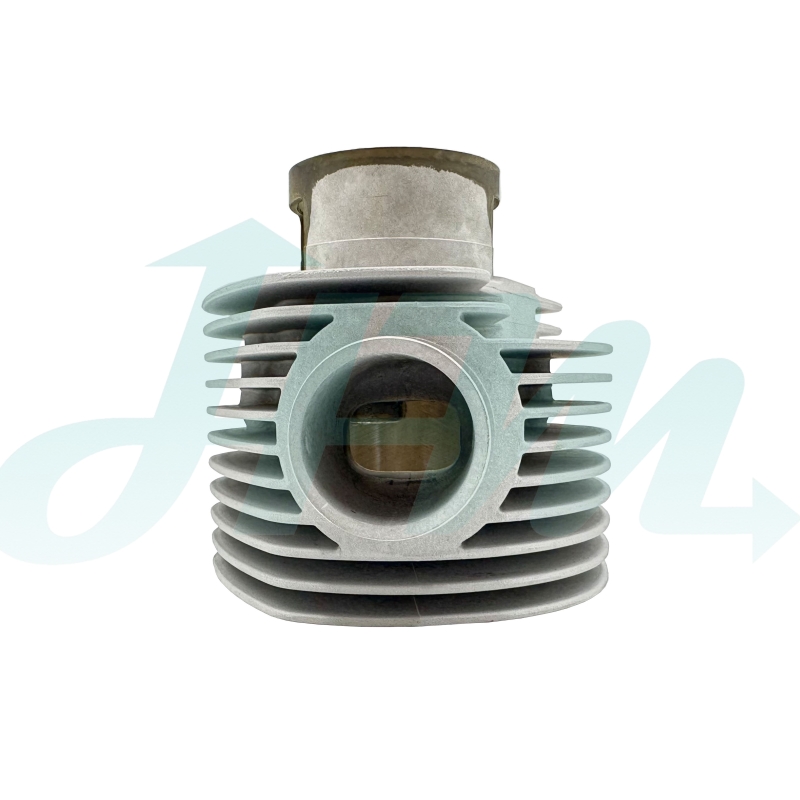

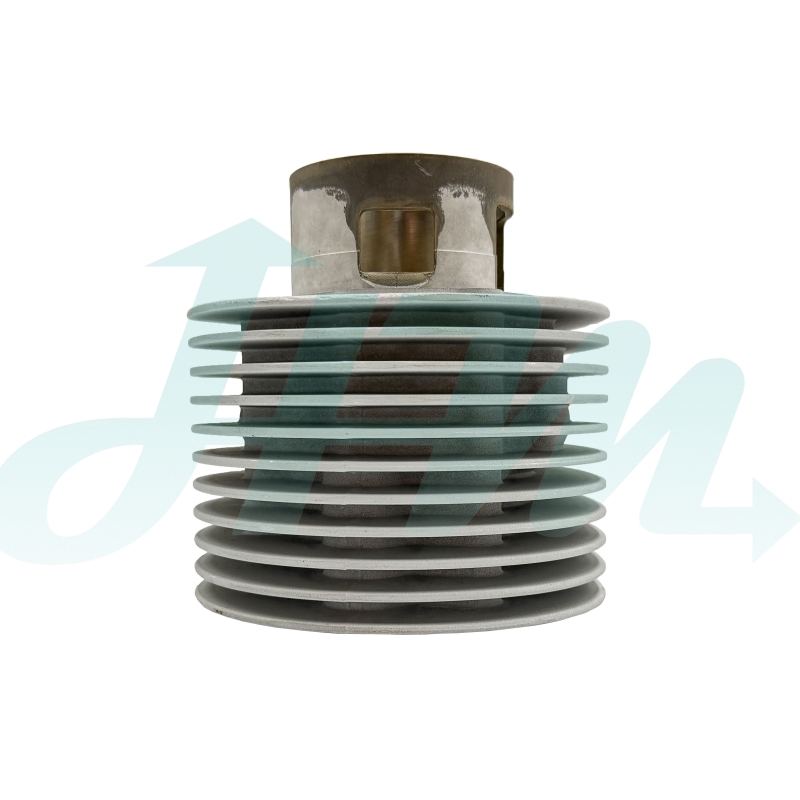

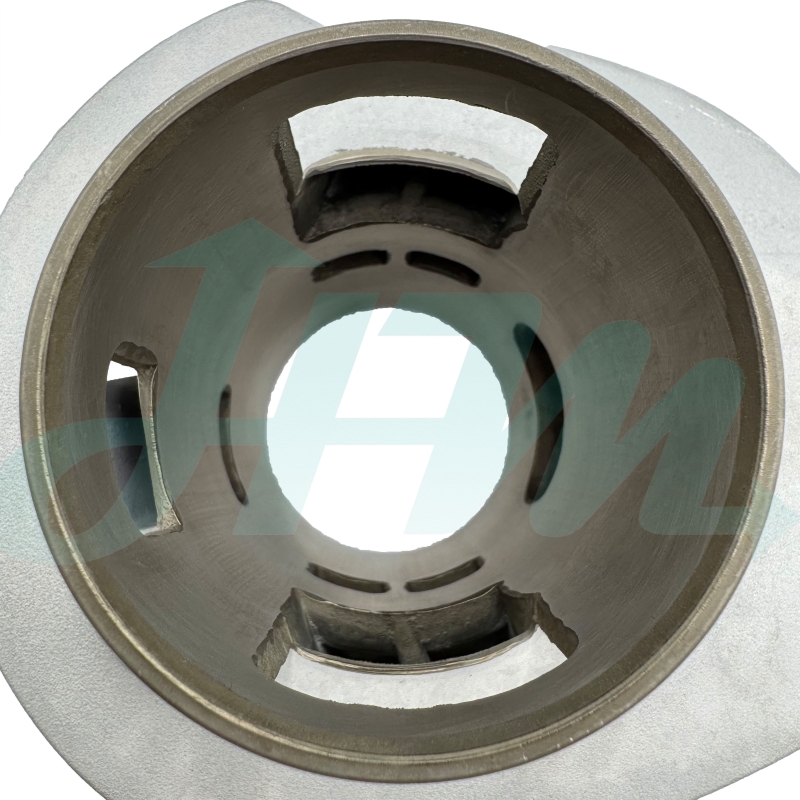

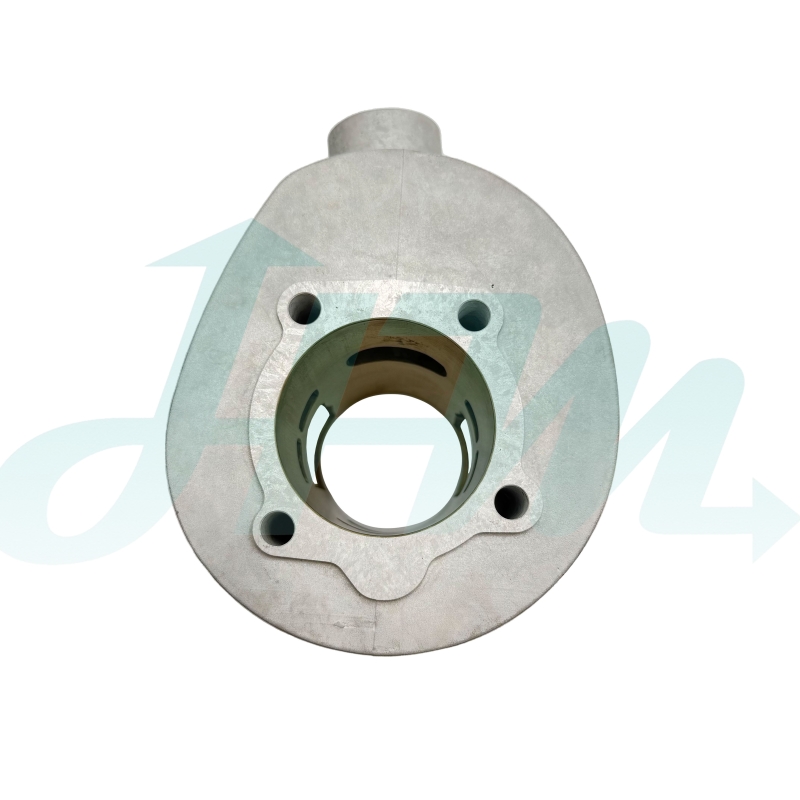

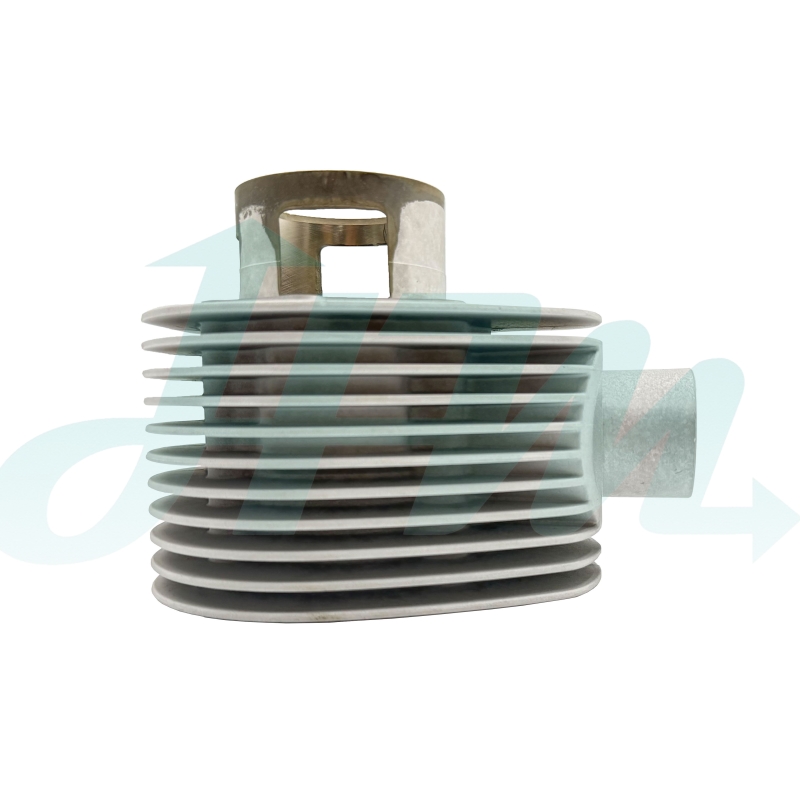

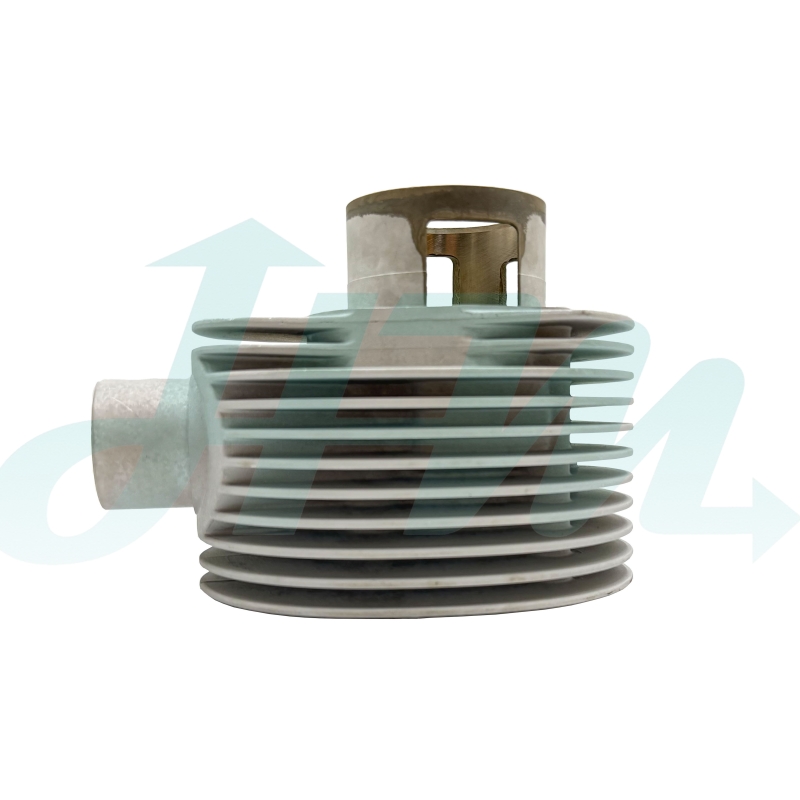

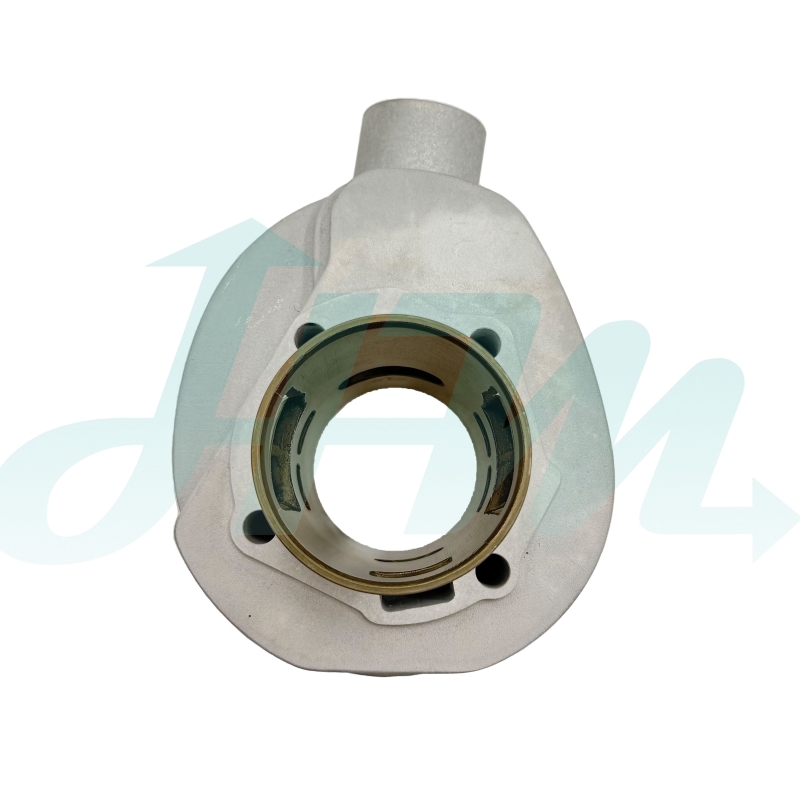

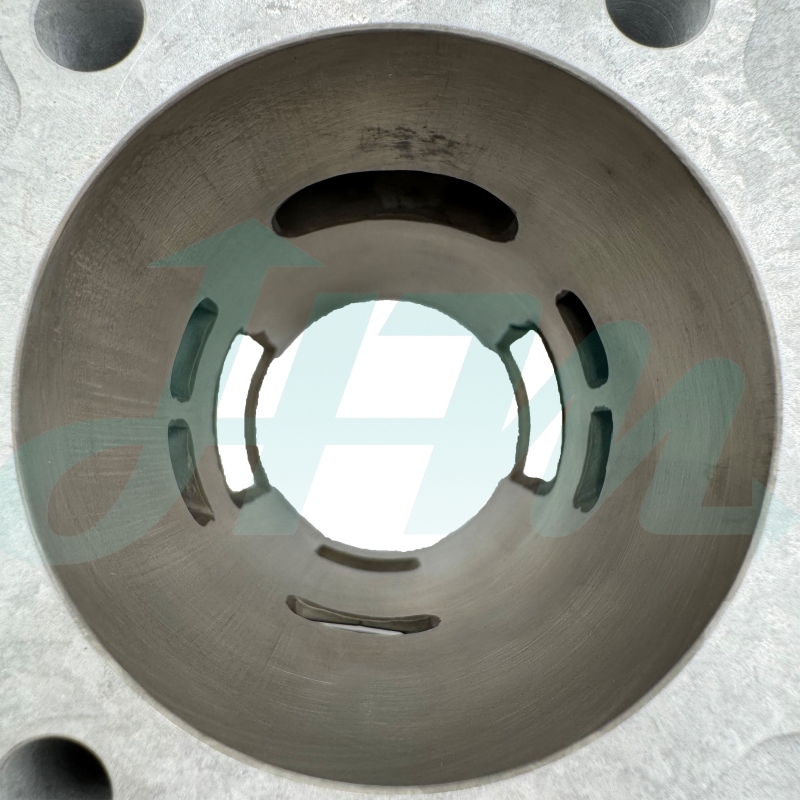

| Ceramic cylinder ø66.5 | HMCY0801266.5 |

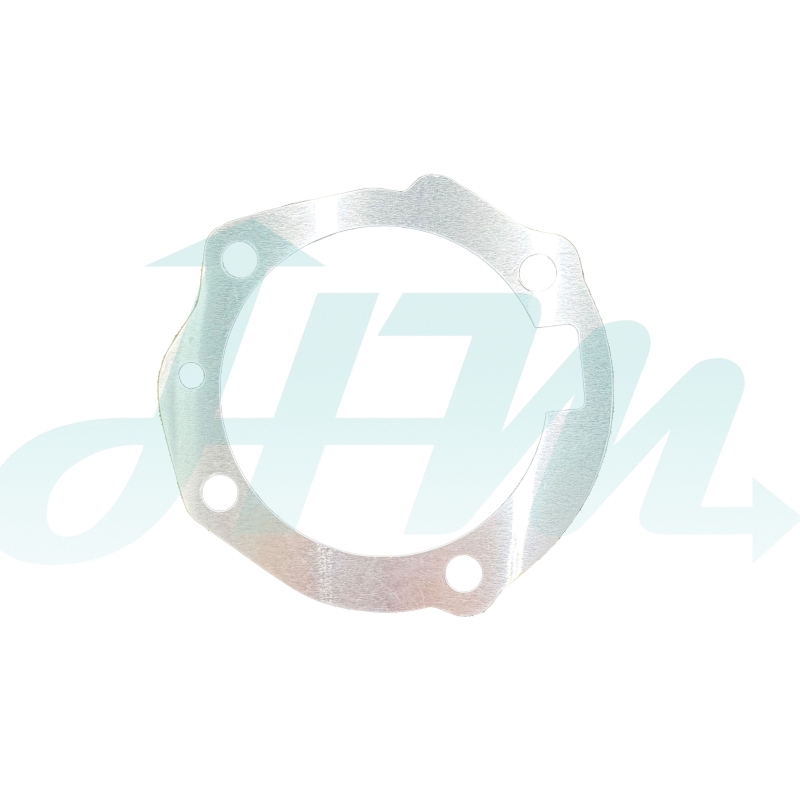

| Gaskets | HMGK0801166.5 |

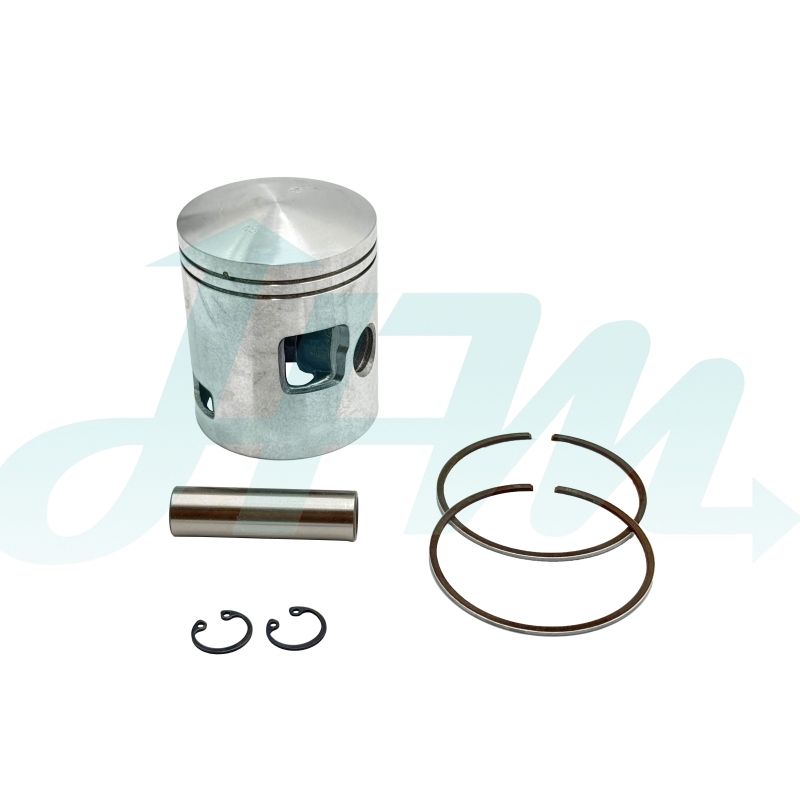

| Cast piston | HMPS0801266.5 |
The piston assembly includes the piston pin, clips and piston rings.
BIG BORE CYLINDER KIT - HMCS0801270.5
| ITEM | NO. |
| Ceramic cylinder ø70.5 | HMCY0801270.5 |
| Gaskets | HMGK0801170.5 |
| Cast piston | HMPS0801270.5 |
The piston assembly includes the piston pin, clips and piston rings.
