CYLINDERS
SR50 L/C
HMCS0100647
MATERIAL: CAST IRON
MATERIAL: CAST IRON
Specification
| MATERIAL | CAST IRON | ENGINE STROKE | 2 STROKE |
|---|---|---|---|
| ORIGINAL SIZE | ø40 | ORIGINAL CC | 50CC |
| BIG BORE SIZE | ø47 | BIG BORE CC | 67.9CC |
| BIG BORE SIZE | ø50 | BIG BORE CC | 76.9CC |
| COUNTRY OF ORIGIN | TAIWAN |
Feature
ORIGINAL CYLINDER KIT - HMCS0100640
| ITEM | NO. |
| Cast iron cylinder ø40 | HMCY0100640 |

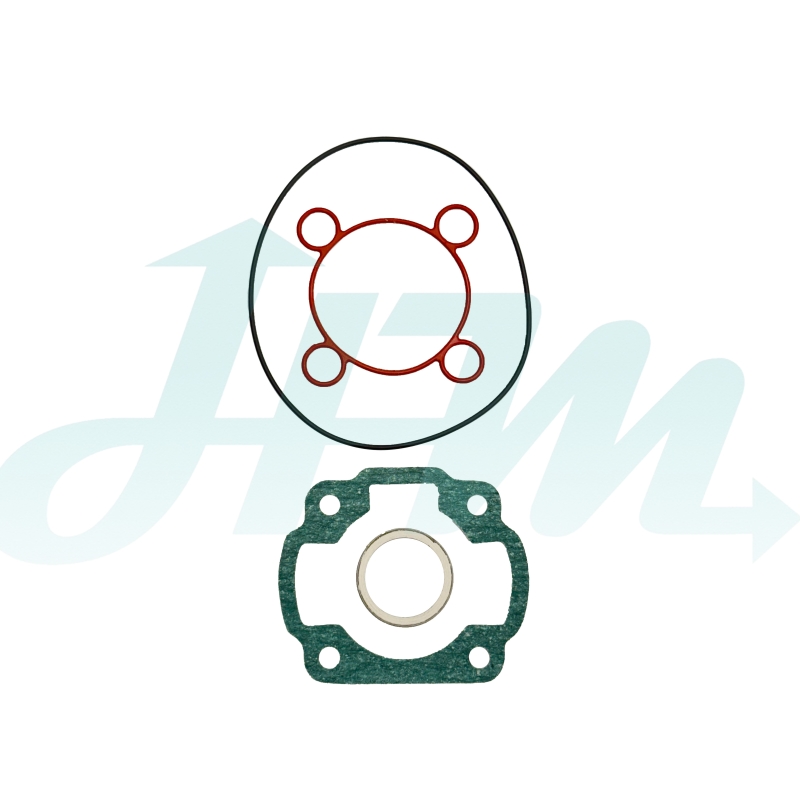

| Gaskets | HMGK0100640 |
| Cast piston | HMPS0100640 |

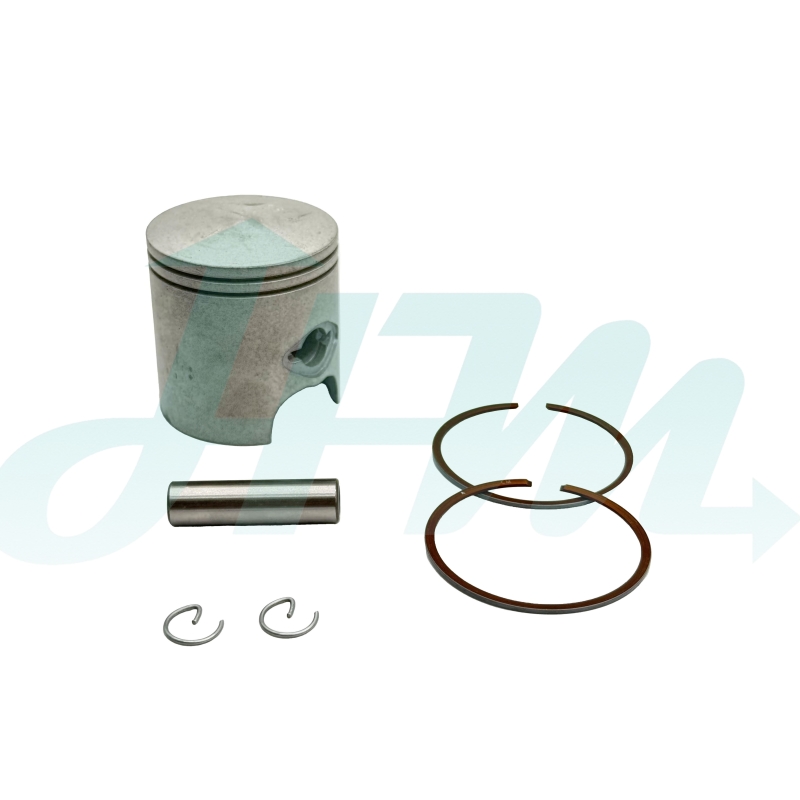

The piston assembly includes the piston pin, clips and piston rings.

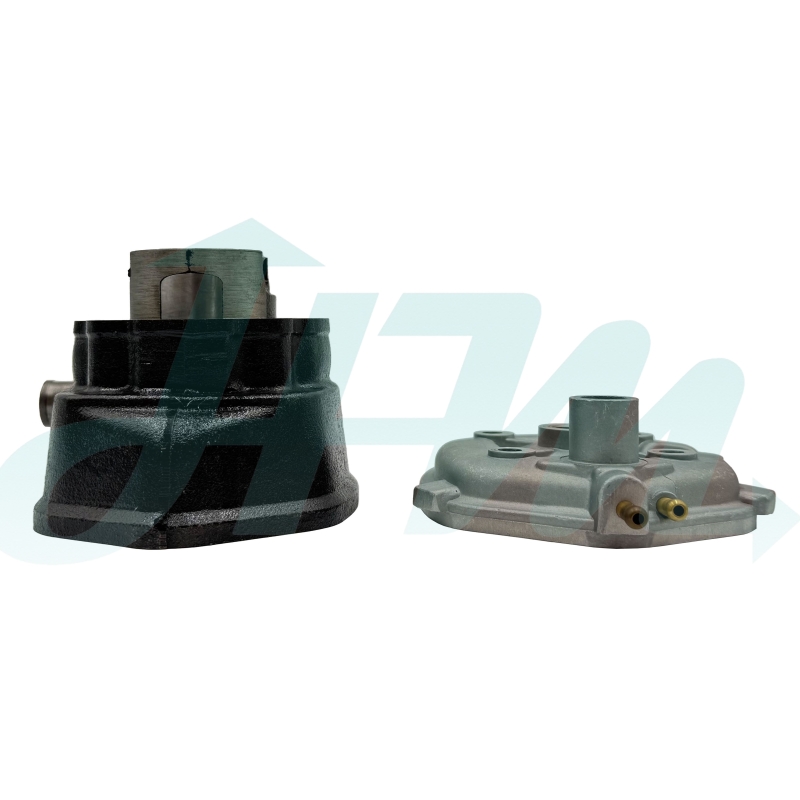

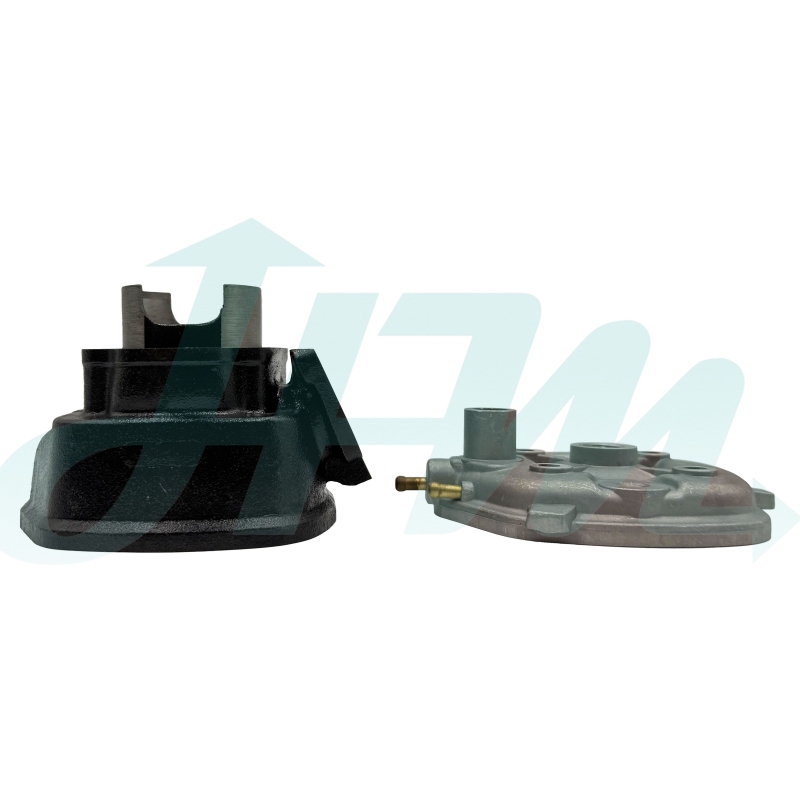

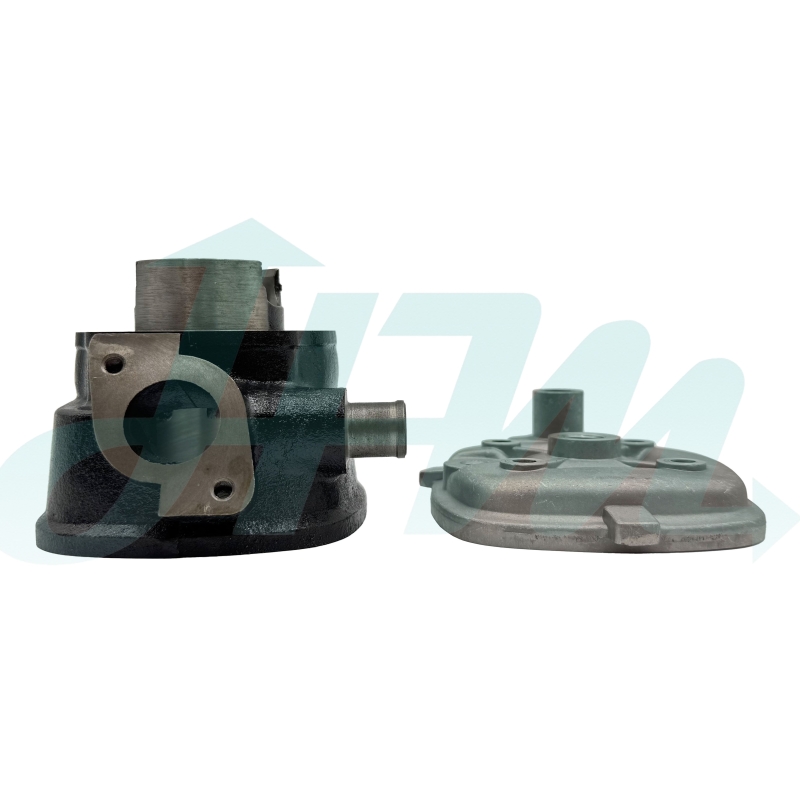

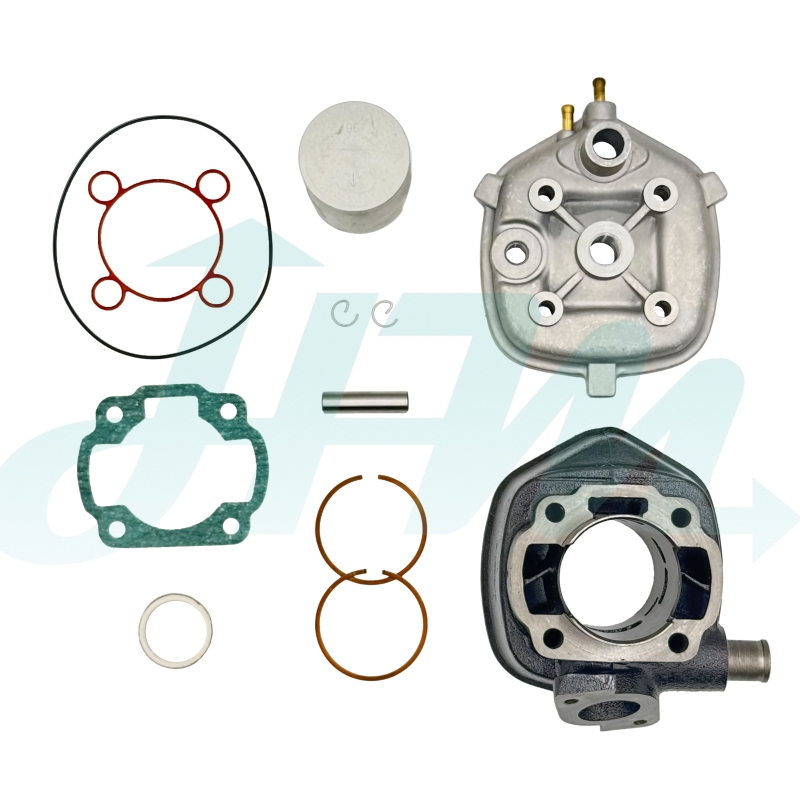

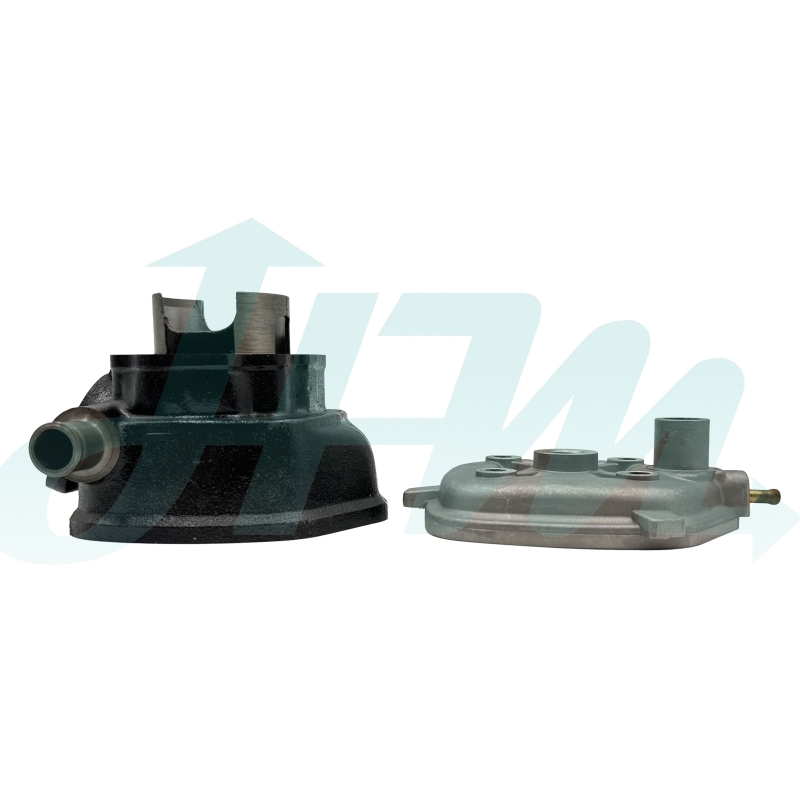

BIG BORE CYLINDER KIT - HMCS0100647WH
| ITEM | NO. |

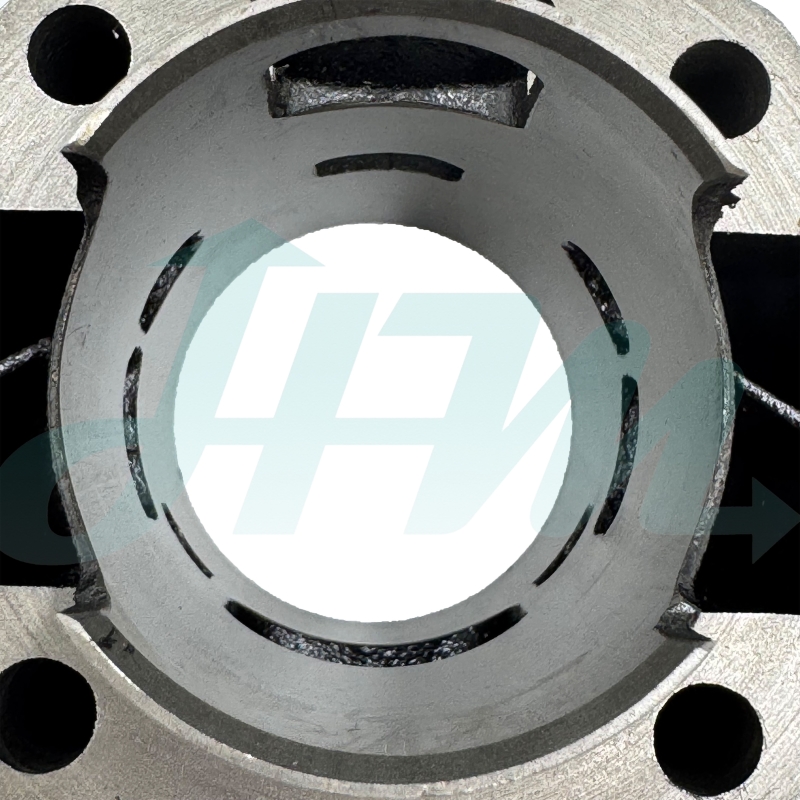

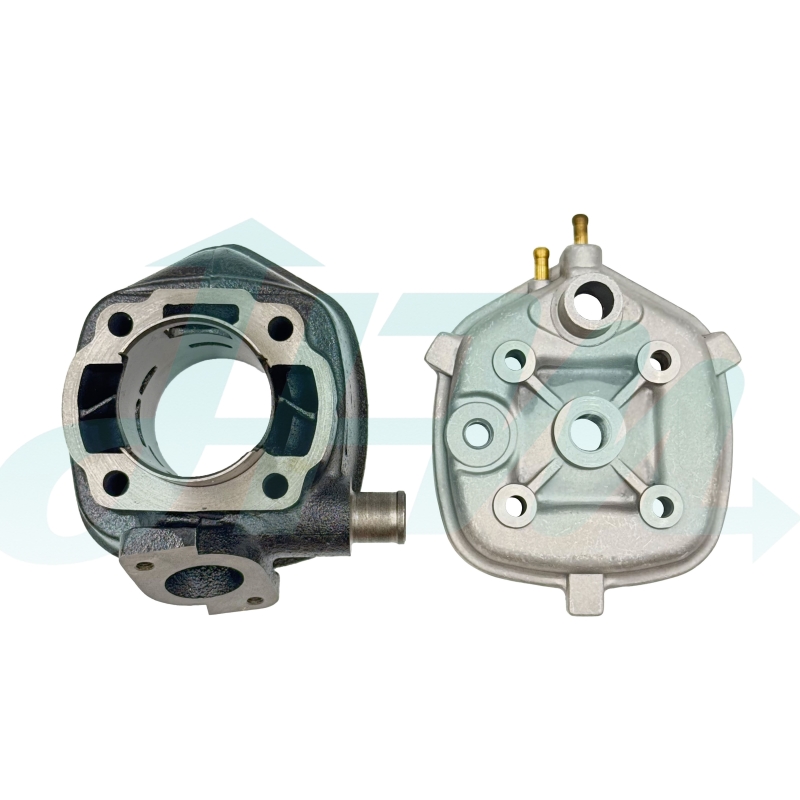

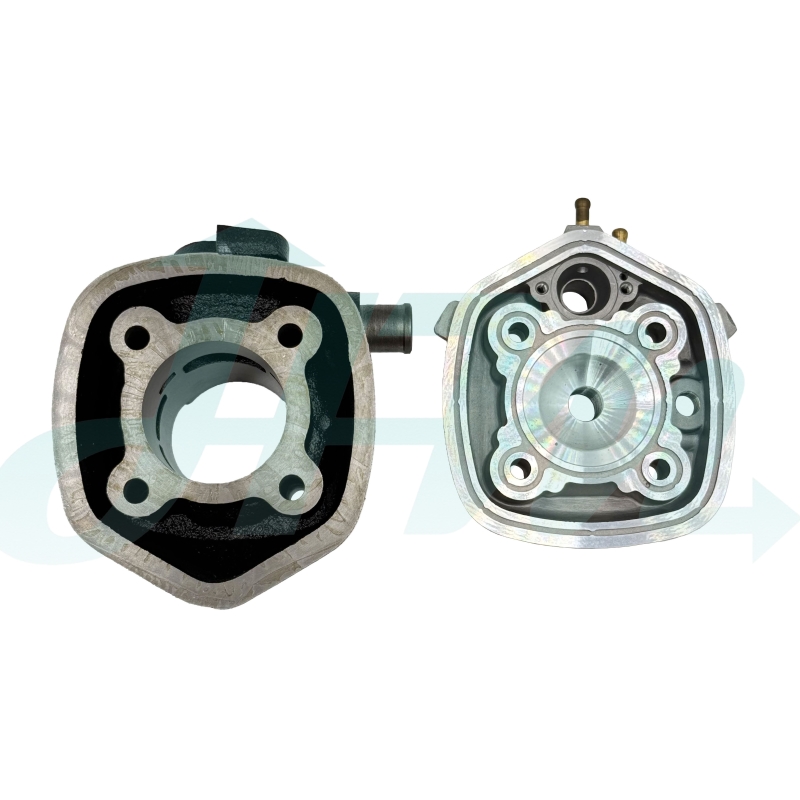

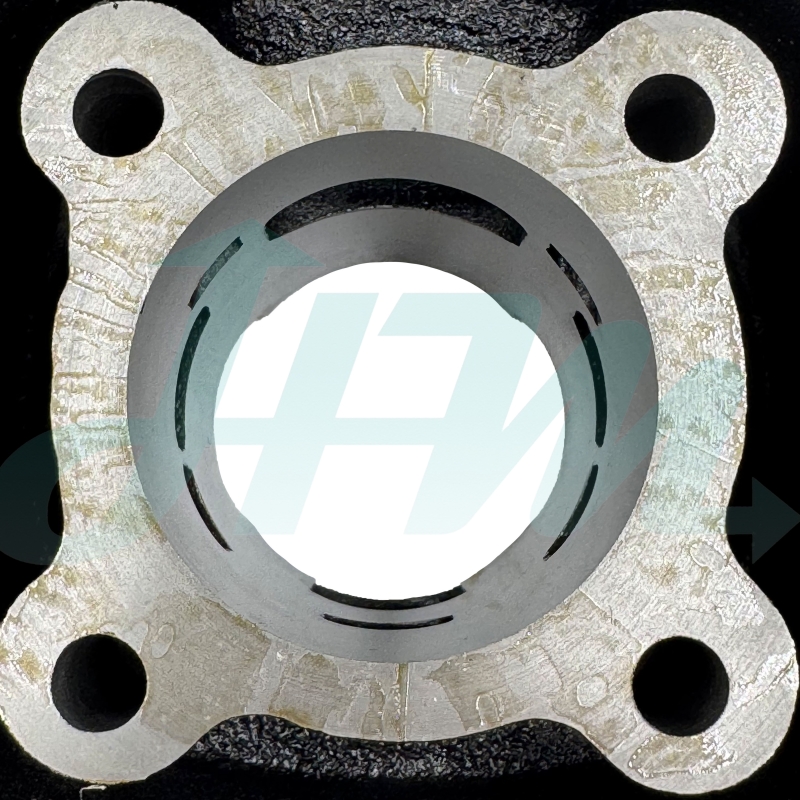

| Cast iron cylinder ø47 | HMCY0100647 |
| Cylinder head | HMCH0100647 |
| Gaskets | HMGK0100647 |
| Cast piston | HMPS0100647 |
The piston assembly includes the piston pin, clips and piston rings.
BIG BORE CYLINDER KIT - HMCS0100650WH
| ITEM | NO. |
| Cast iron cylinder ø50 | HMCY0100650 |
| Cylinder head | HMCH0100650 |
| Gaskets | HMGK0100550 |
| Cast piston | HMPS0100650 |
The piston assembly includes the piston pin, clips and piston rings.
FITMENT
YAMAHA AEROX50, MINARELLI-O (L/C)
