CYLINDERS
CIAO50
HMCS0800138.2
MATERIAL: CAST IRON
MATERIAL: CAST IRON
Specification
| MATERIAL | CAST IRON | ENGINE STROKE | 2 STROKE |
|---|---|---|---|
| ORIGINAL SIZE | ø38.2 | ORIGINAL CC | 49.7CC |
| BIG BORE SIZE | ø41 | BIG BORE CC | 56.7CC |
| BIG BORE SIZE | ø43 | BIG BORE CC | 62.4CC |
| COUNTRY OF ORIGIN | TAIWAN |
Feature
ORIGINAL CYLINDER KIT - HMCS0800138.2
| ITEM | NO. |

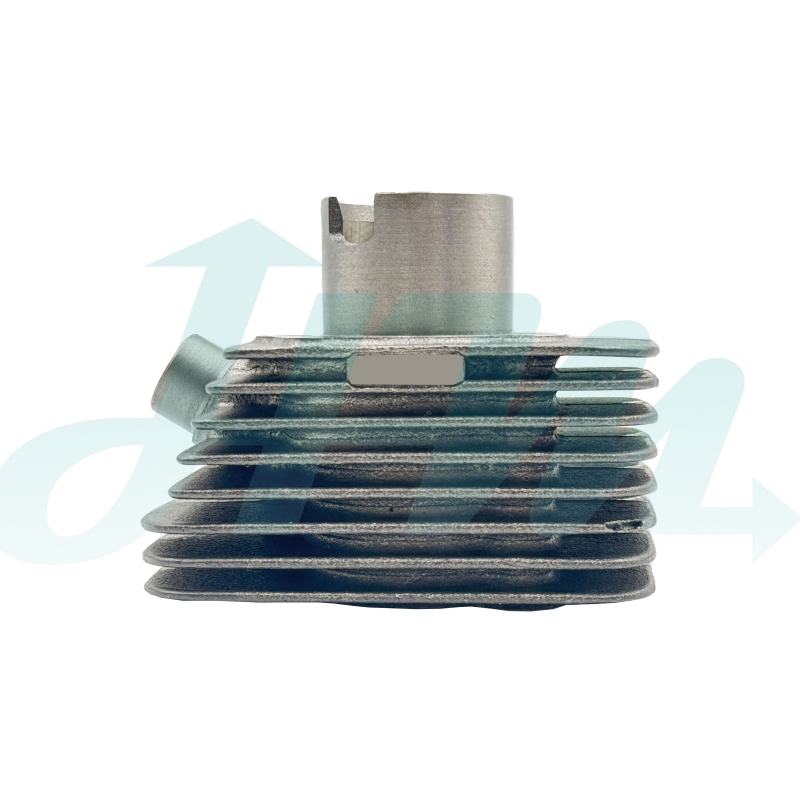

| Cast Iron cylinder ø38.2 | HMCY0800138.2 |

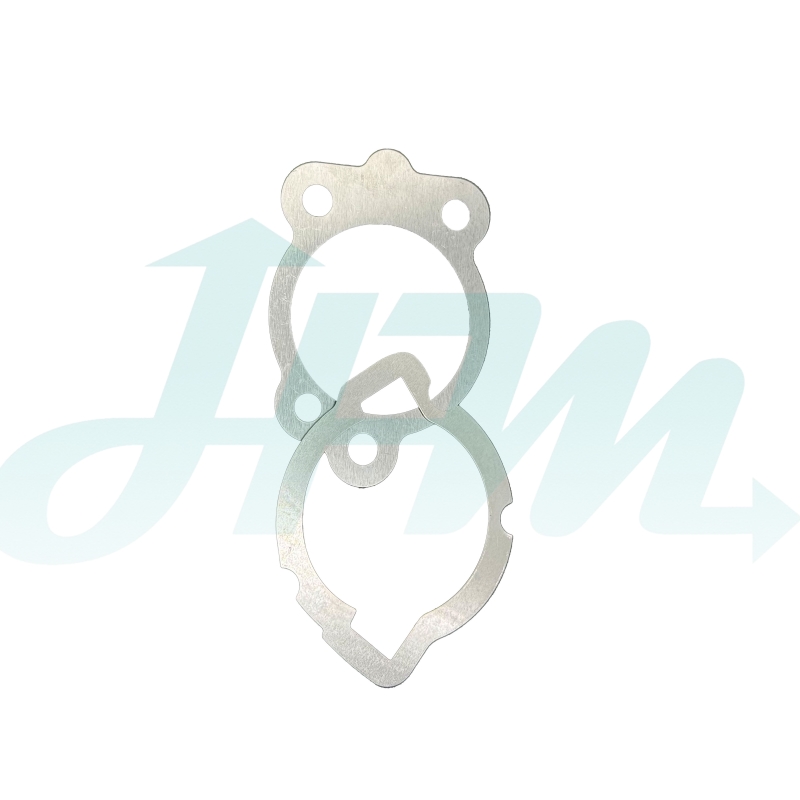

| Gaskets | HMGK0800138.2 |
| Cast piston | HMPS0800138.2 |

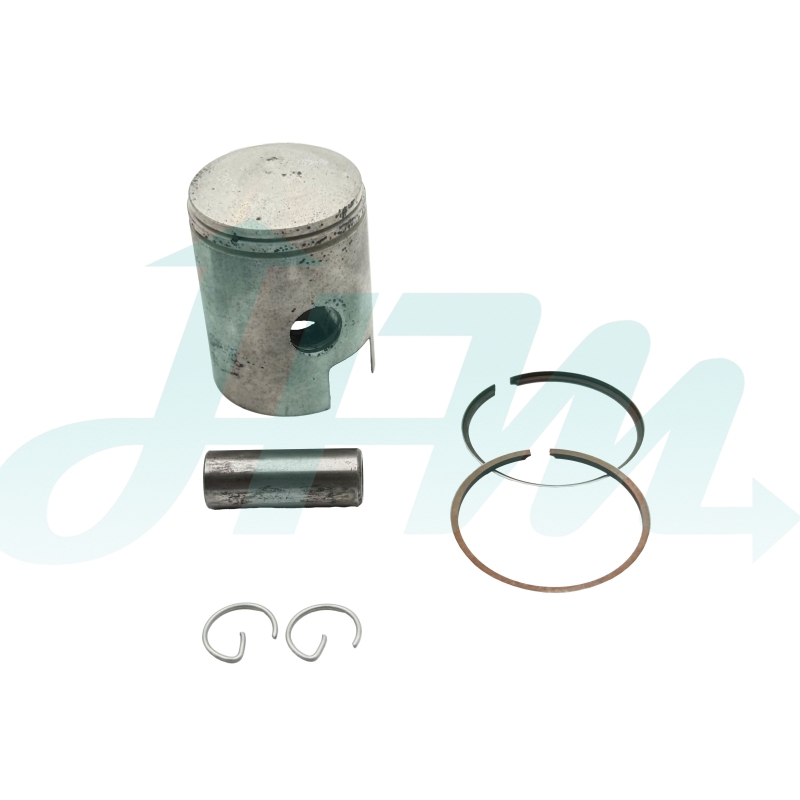

The piston assembly includes the piston pin, clips and piston rings.
BIG BORE CYLINDER KIT - HMCS0800141WH
| ITEM | NO. |
| Cast Iron cylinder ø41 | HMCY0800141 |
| Cylinder head | HMCH0800141 |
| Gaskets | HMGK0800141 |
| Cast piston | HMPS0800141 |
The piston assembly includes the piston pin, clips and piston rings.
BIG BORE CYLINDER KIT - HMCS0800143WH
| ITEM | NO. |
| Cast Iron cylinder ø43 | HMCY0800143 |
| Cylinder head | HMCH0800143 |
| Gaskets | HMGK0800143 |
| Cast piston | HMPS0800143 |
The piston assembly includes the piston pin, clips and piston rings.
