CYLINDERS
PEUGEOT50 / SPEED FIGHT L/C
HMCS0700847
MATERIAL: CAST IRON
MATERIAL: CAST IRON
Specification
| MATERIAL | CAST IRON | ENGINE STROKE | 2 STROKE |
|---|---|---|---|
| ORIGINAL SIZE | ø40 | ORIGINAL CC | 50CC |
| BIG BORE SIZE | ø47 | BIG BORE CC | 67.9CC |
| BIG BORE SIZE | ø50 | BIG BORE CC | 76.9CC |
| COUNTRY OF ORIGIN | TAIWAN |
Feature
ORIGINAL CYLINDER KIT - HMCS0700840
| ITEM | NO. |
| Cast Iron cylinder ø40 | HMCY0700840 |
| Gaskets | HMGK0700840 |
| Cast piston | HMPS0700840 |

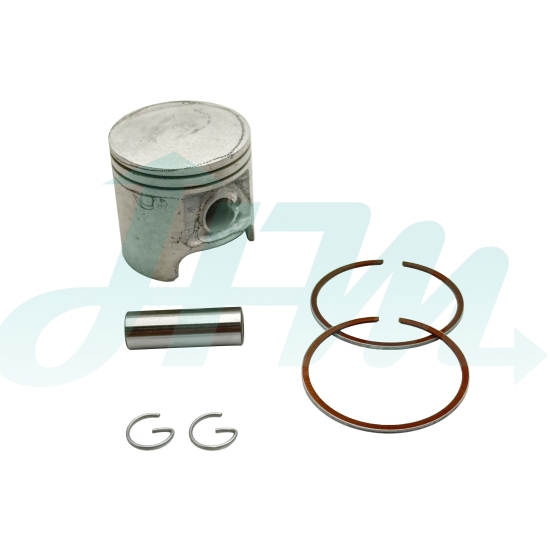

The piston assembly includes the piston pin, clips and piston rings.

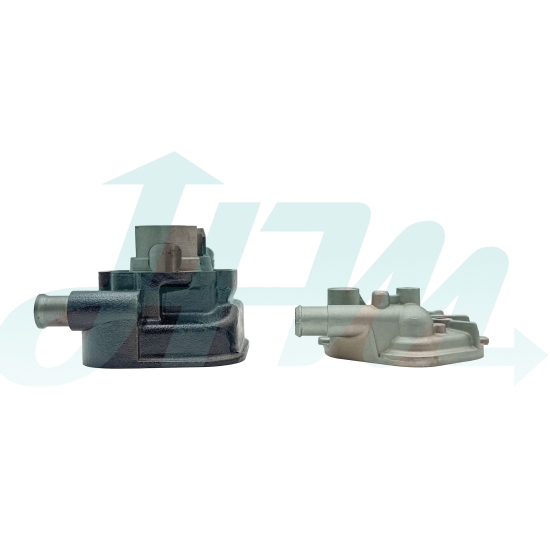

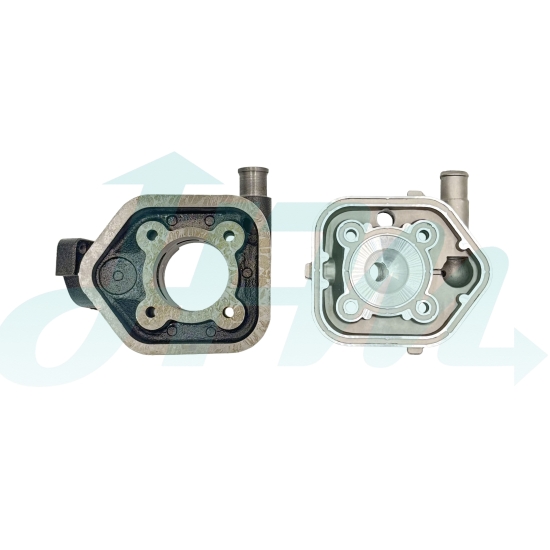

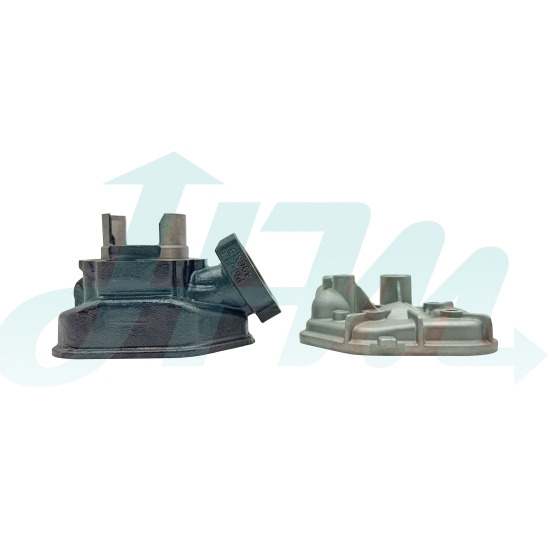

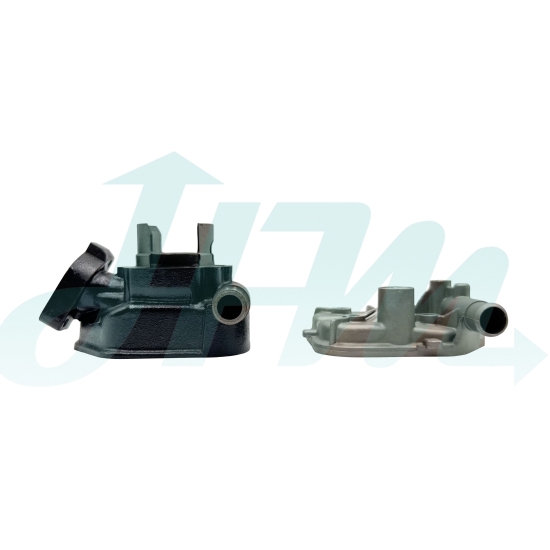

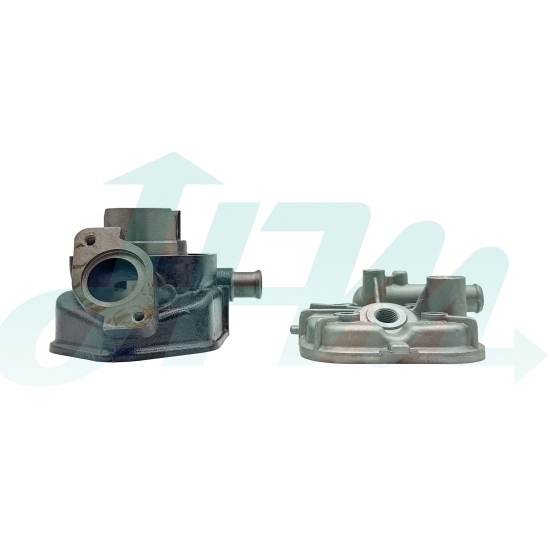

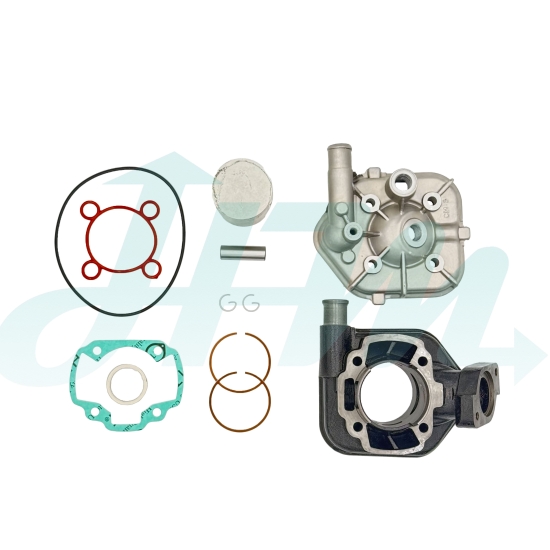

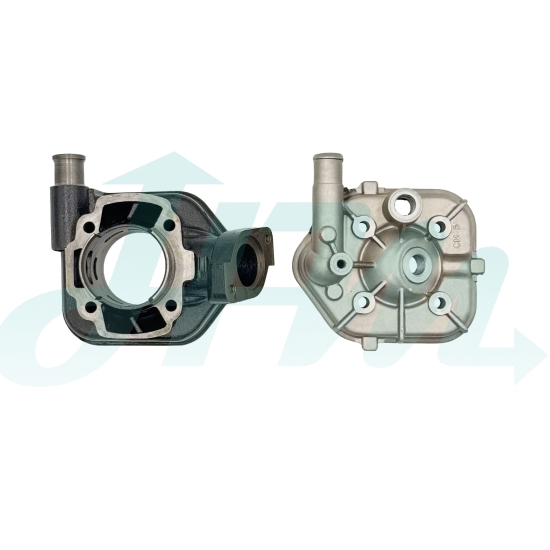

BIG BORE CYLINDER KIT - HMCS0700847WH
| ITEM | NO. |

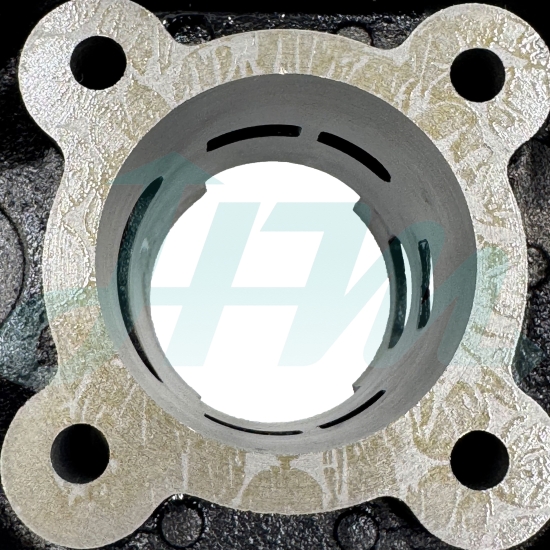

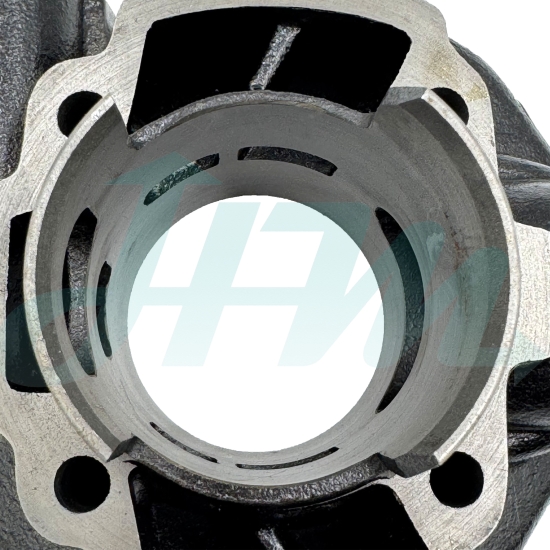

| Cast Iron cylinder ø47 | HMCY0700847 |
| Cylinder head | HMCH0700847 |

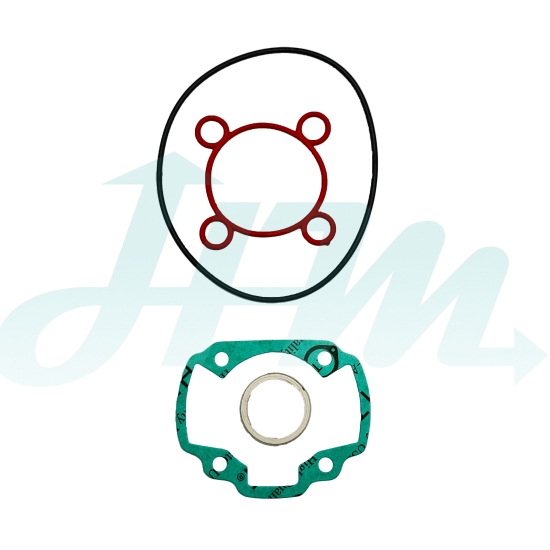

| Gaskets | HMGK0700847 |
| Cast piston | HMPS0700847 |
The piston assembly includes the piston pin, clips and piston rings.
BIG BORE CYLINDER KIT - HMCS0700850WH
| ITEM | NO. |
| Cast Iron cylinder ø50 | HMCY0700850 |
| Cylinder head | HMCH0700850 |
| Gaskets | HMGK0700750 |
| Cast piston | HMPS0700850 |
The piston assembly includes the piston pin, clips and piston rings.
