CYLINDERS
MINARELLI L/C (HORIZONTAL)
HMCS0100647
MATERIAL: CAST IRON
MATERIAL: CAST IRON
Specification
| MATERIAL | CAST IRON | ENGINE STROKE | 2 STROKE |
|---|---|---|---|
| ORIGINAL SIZE | ø40 | ORIGINAL CC | 50CC |
| BIG BORE SIZE | ø47 | BIG BORE CC | 67.9CC |
| BIG BORE SIZE | ø48 | BIG BORE CC | 70.9CC |
| COUNTRY OF ORIGIN | TAIWAN |
Feature
ORIGINAL CYLINDER KIT - HMCS0100640
| ITEM | NO. |
| Cast Iron cylinder ø40 | HMCY0100640 |
| Gaskets | HMGK0100640 |
| Cast piston | HMPS0100640 |
The piston assembly includes the piston pin, clips and piston rings.

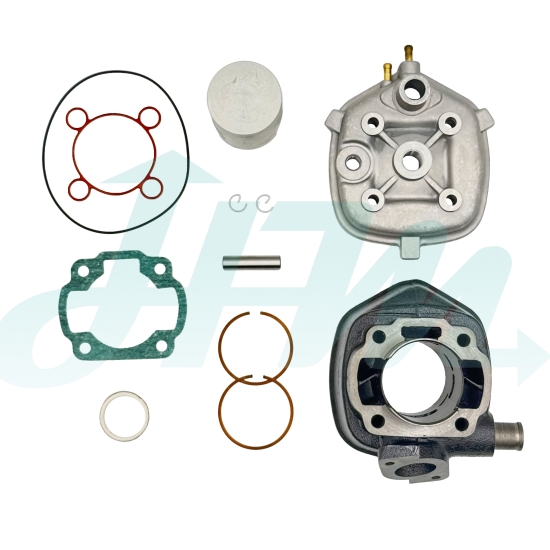

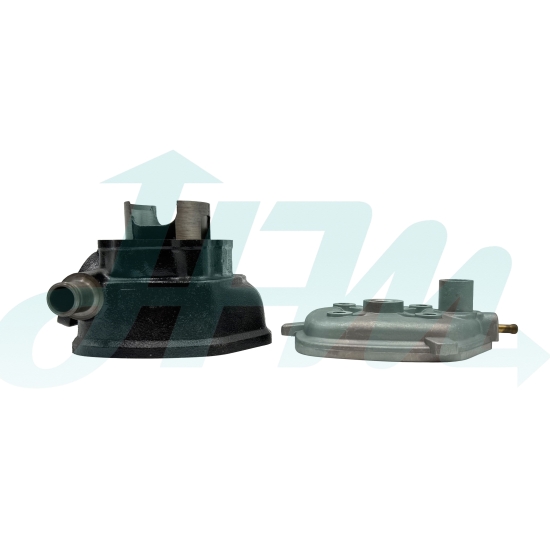

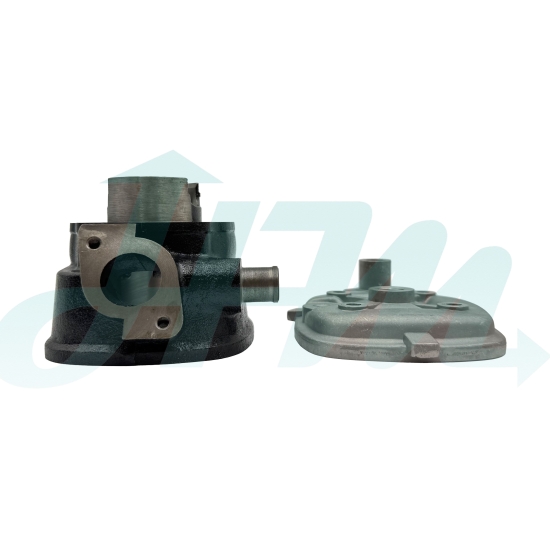

BIG BORE CYLINDER KIT - HMCS0100647WH
| ITEM | NO. |

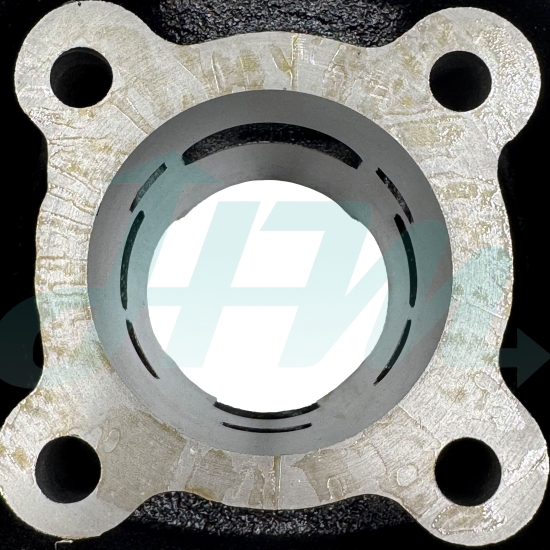

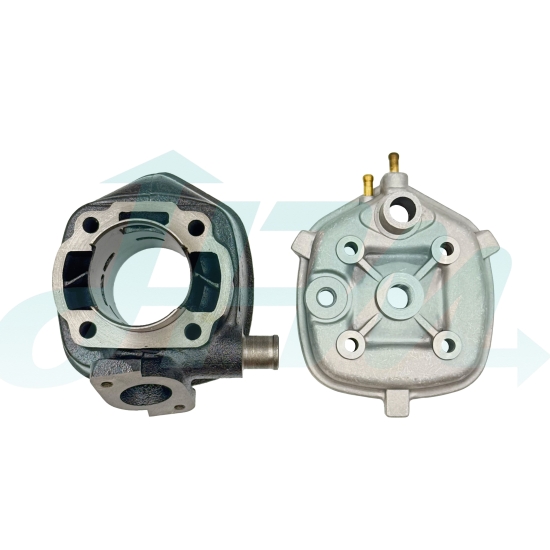

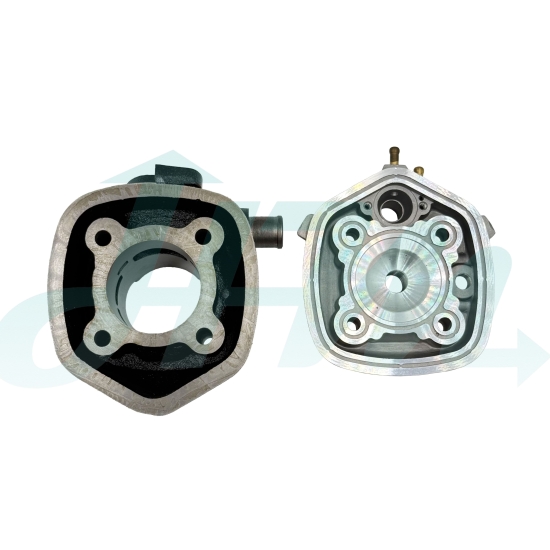

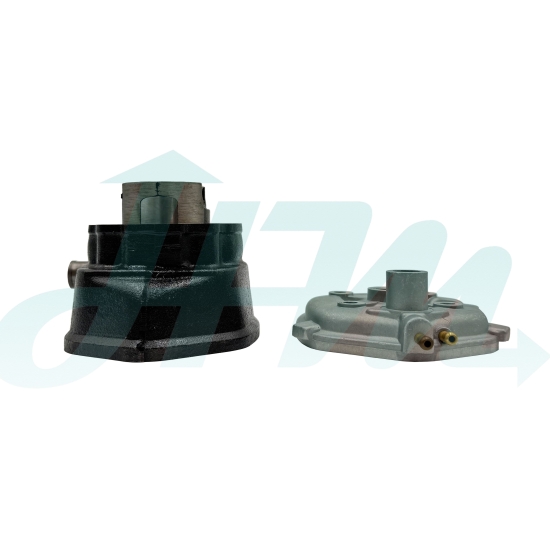

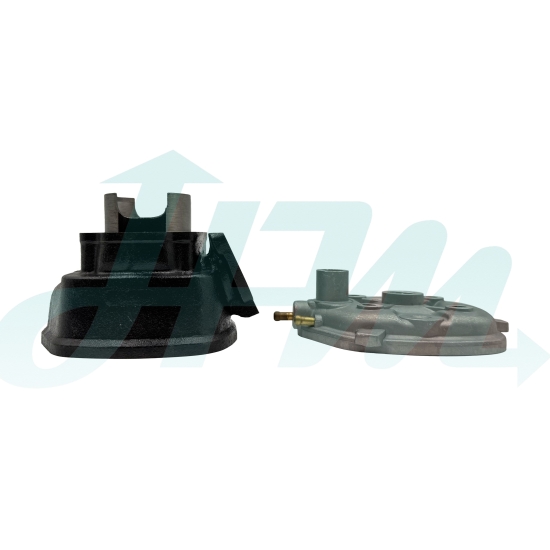

| Cast Iron cylinder ø47 | HMCY0100647 |
| Cylinder head | HMCH0100647 |

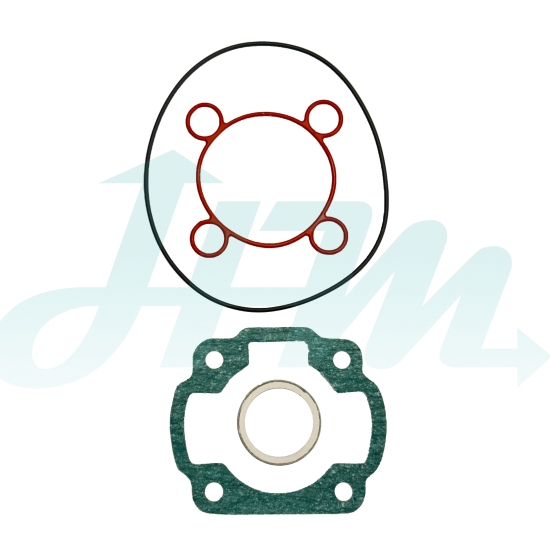

| Gaskets | HMGK0100647 |

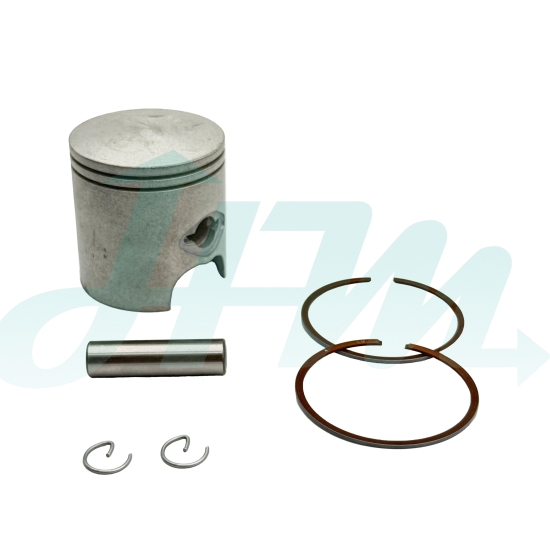

| Cast piston | HMPS0100647 |
The piston assembly includes the piston pin, clips and piston rings.
BIG BORE CYLINDER KIT - HMCS0100648WH
| ITEM | NO. |
| Cast Iron cylinder ø48 | HMCY0100648 |
| Cylinder head | HMCH0100648 |
| Gaskets | HMGK0100648 |
| Cast piston | HMPS0100648 |
The piston assembly includes the piston pin, clips and piston rings.
FITMENT
YAMAHA AEROX50 (L/C), APRILIA SR50 (L/C)
