CYLINDERS
AM6 50
HMCS0600247WH
MATERIAL: CAST IRON
MATERIAL: CAST IRON
Specification
| MATERIAL | CAST IRON | ENGINE STROKE | 2 STROKE |
|---|---|---|---|
| ORIGINAL SIZE | ø40.3 | ORIGINAL CC | 50CC |
| BIG BORE SIZE | ø47 | BIG BORE CC | 67.9CC |
| BIG BORE SIZE | ø50 | BIG BORE CC | 76.9CC |
| COUNTRY OF ORIGIN | TAIWAN |
Feature
ORIGINAL CYLINDER KIT - HMCS0600240.3
| ITEM | NO. |

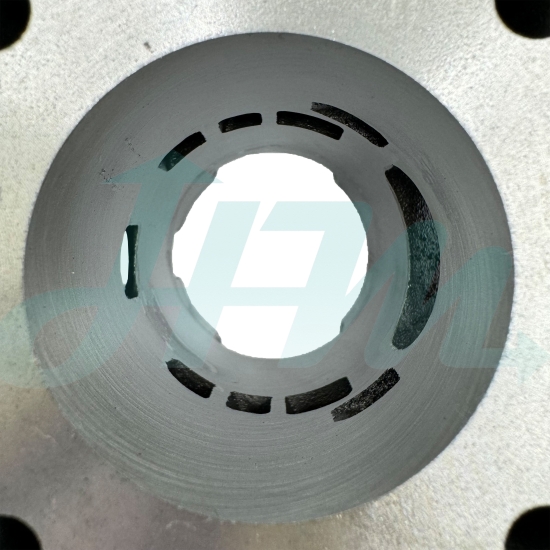

| Cast Iron cylinder ø40.3 | HMCY0600240.3 |

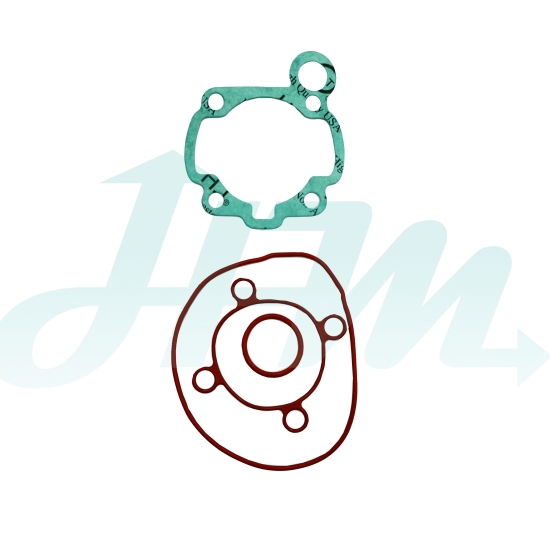

| Gaskets | HMGK0600240.3 |
| Cast piston | HMPS0600240.3 |

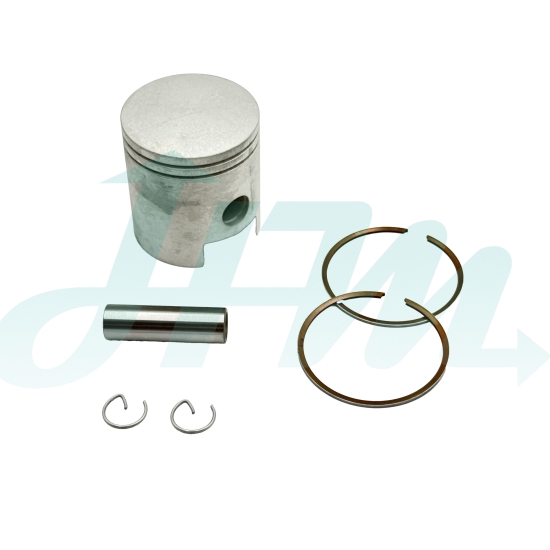

The piston assembly includes the piston pin, clips and piston rings.

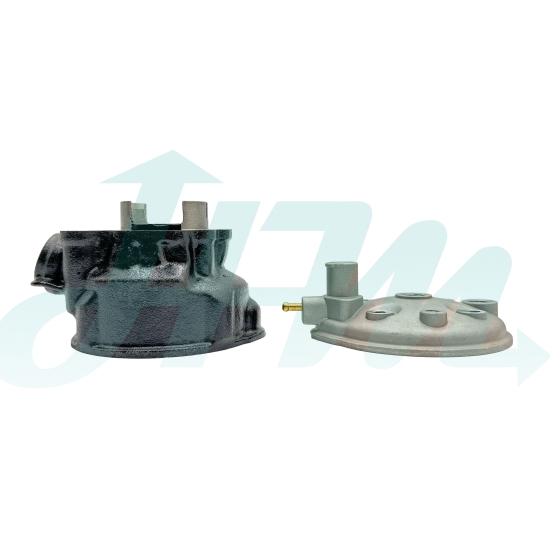

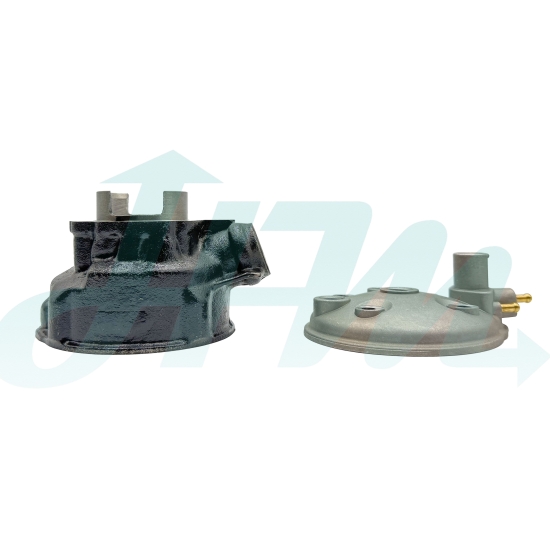

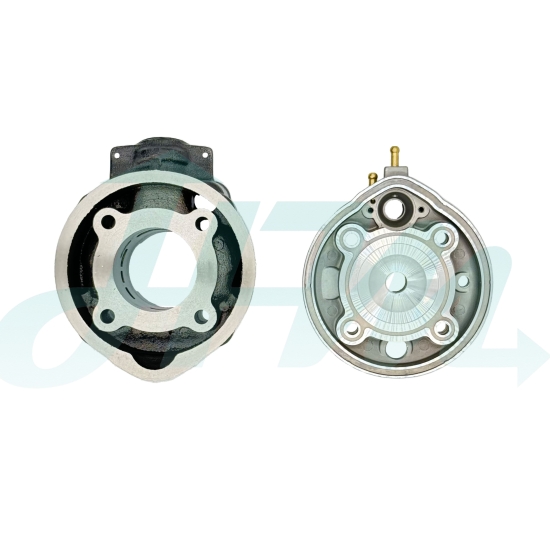

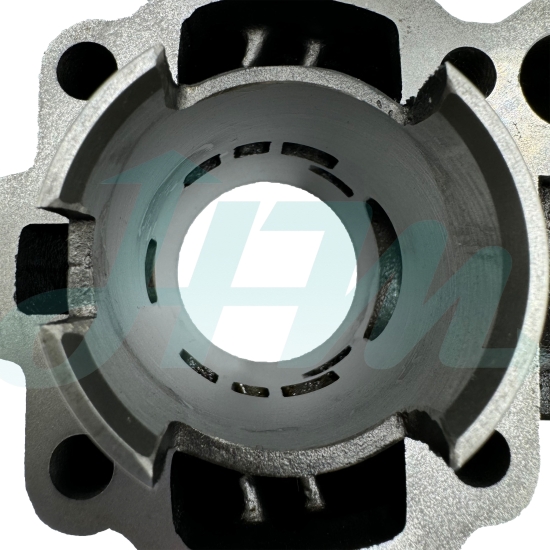

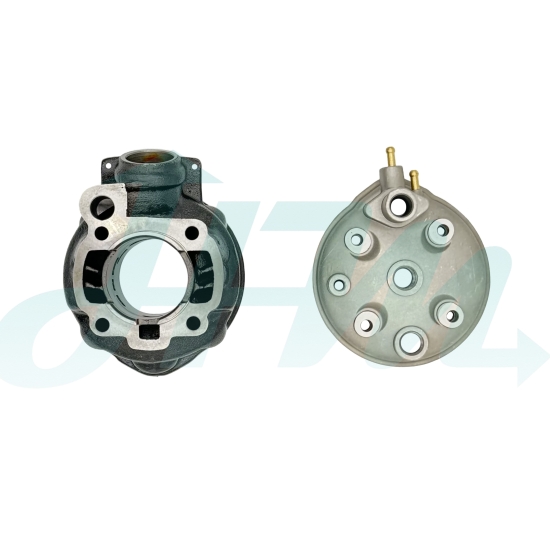

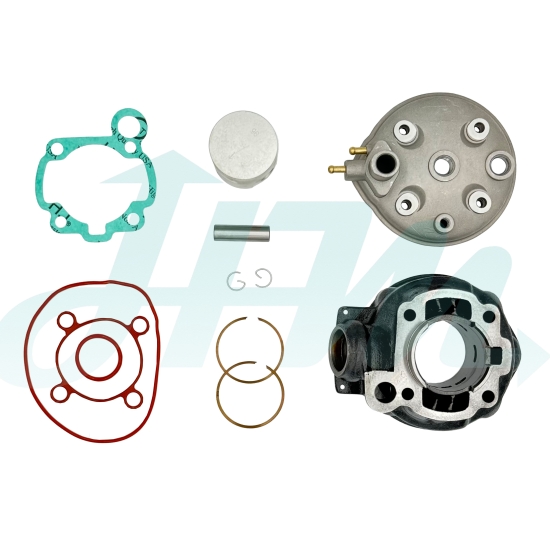

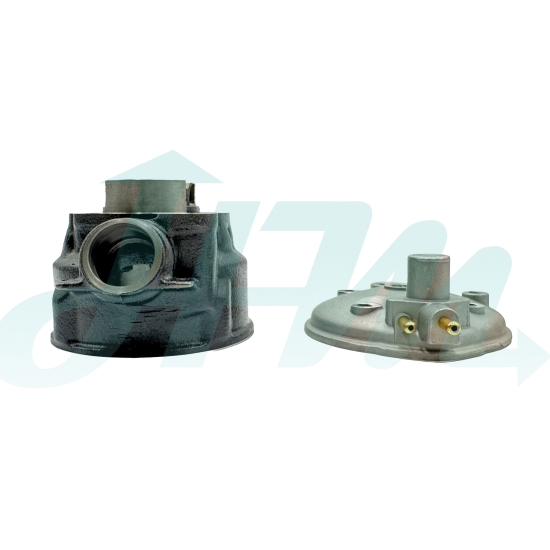

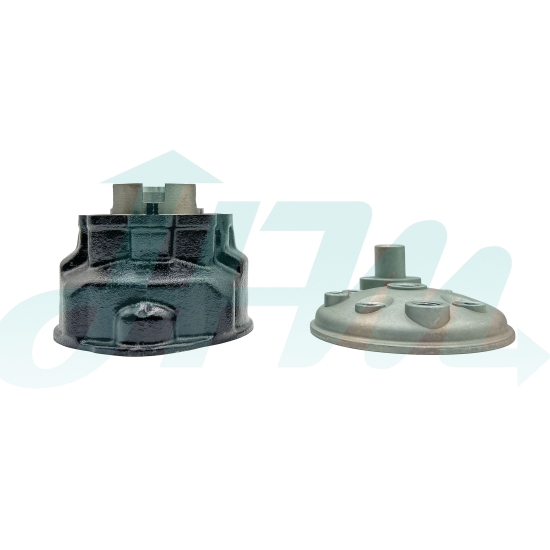

BIG BORE CYLINDER KIT - HMCS0600247WH
| ITEM | NO. |
| Cast Iron cylinder ø47 | HMCY0600247 |
| Cylinder head | HMCH0600247 |
| Gaskets | HMGK0600247 |
| Cast piston | HMPS0600247 |
The piston assembly includes the piston pin, clips and piston rings.
BIG BORE CYLINDER KIT - HMCS0600250WH
| ITEM | NO. |
| Cast Iron cylinder ø50 | HMCY0600250 |
| Cylinder head | HMCH0600250 |
| Gaskets | HMGK0600250 |
| Cast piston | HMPS0600250 |
The piston assembly includes the piston pin, clips and piston rings.
